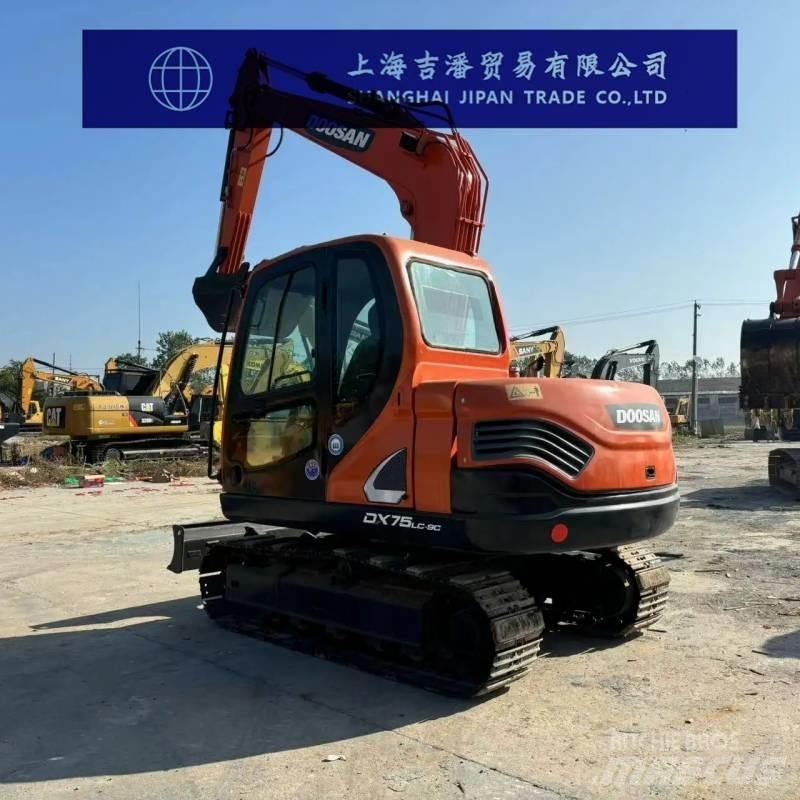

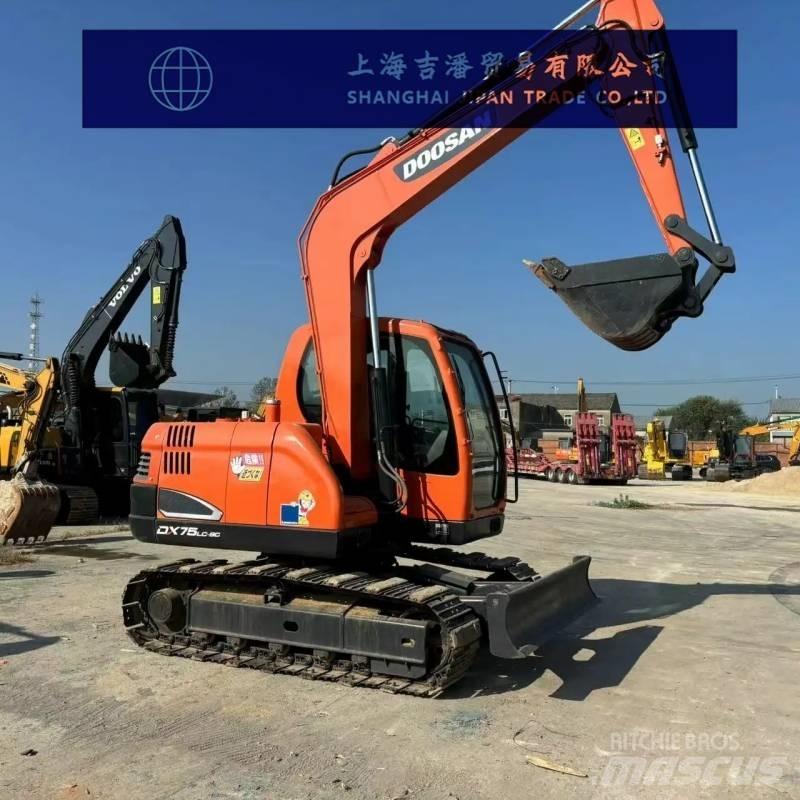

Doosan DX 75

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Doosan DX75-9C excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)7 The working weight of the entire machine (kg) is 7420 Bucket capacity (m³)0.3 Boom length (mm) : 3620 The length of the boom (mm) is 1670 Performance Rotational speed (rpm) : 10.4 The rotational torque (Nm) is 1760 Walking speed (km/h) : High: 4.5 / Low: 2.8 Ground specific pressure (Kpa)34 Bucket digging force (kN)53.4 The digging force of the bucket arm (kN) is 36.9 Power system Engine model: Yanmar 4TNV98-EXS Rated power (kw/rpm)39/2200 Displacement (L)6.494 Number of cylinders (4) Cylinder diameter × stroke (mm)98×110 The working form is straightforward and naturally aspirated. Hydraulic system The main pump type is a variable piston pump The rotary hydraulic motor type is an axial piston motor The type of walking hydraulic motor is a variable axial piston motor Control hydraulic circuit (Mpa)3.9 Oil capacity Fuel tank (L)111 Hydraulic oil tank (L)90 Main body size Total transportation length (mm) : 6030 The total transportation width (mm) is 2180 The total transportation height (mm) is 2680 The total height of the cab (mm) is 2950 The width of the vehicle is 2130 mm The grounding length of the track (mm) is 3670 The total length of the track (mm) is 2750 Track plate width (mm) : 450 The total width of the tracks (mm) is 2100 Track gauge (mm) : 1650 The ground clearance of the counterweight (mm) is 1030 Minimum ground clearance (mm) : 370 The minimum turning radius (mm) of the front working device is 1745 The rear end turning radius (mm) is 1750 The maximum height (mm) at the minimum turning radius is 7180 Scope of work Maximum excavation radius (mm) : 6115 The maximum excavation radius (mm) of the shutdown face is 6270 Maximum excavation depth (mm) : 4080 Maximum excavation height (mm) : 7100 Maximum unloading height (mm) : 7180 Maximum vertical excavation depth (mm) : 2670 Maximum effective excavation depth (mm) : 3725 The width × height (mm) of the bulldozer board is 2100×418
