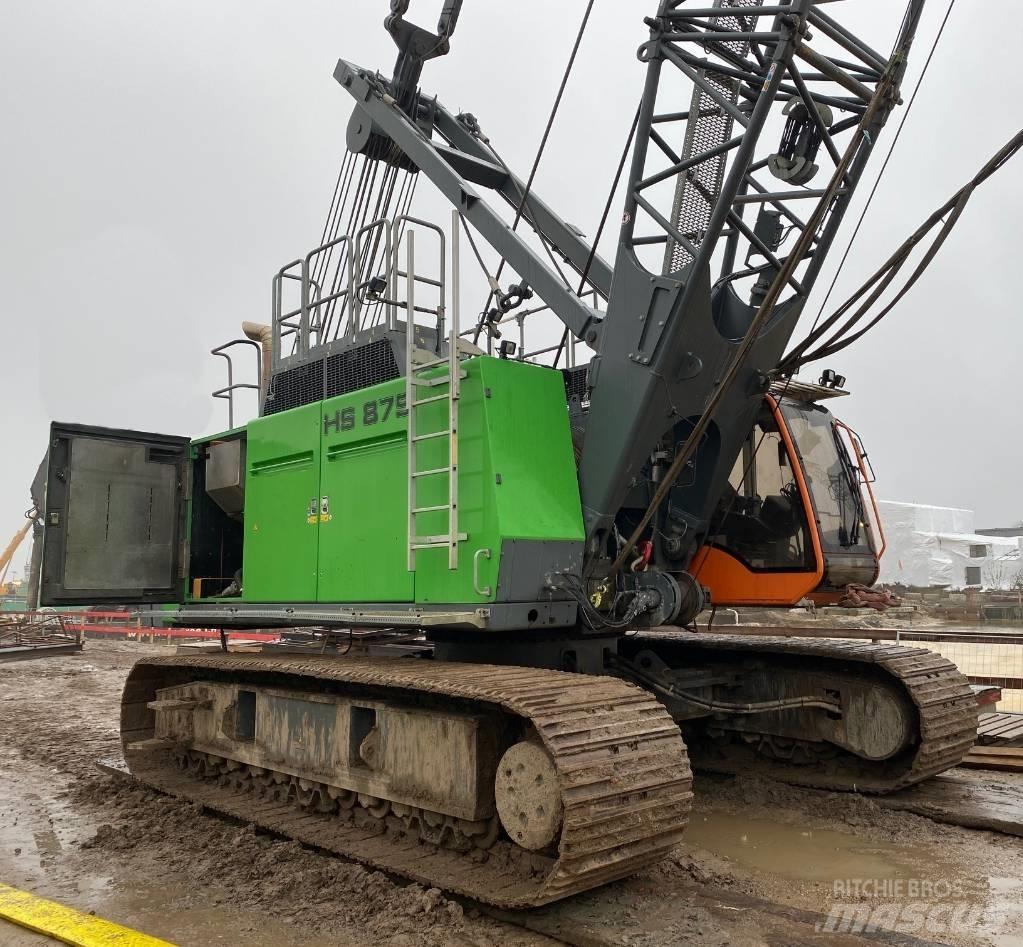

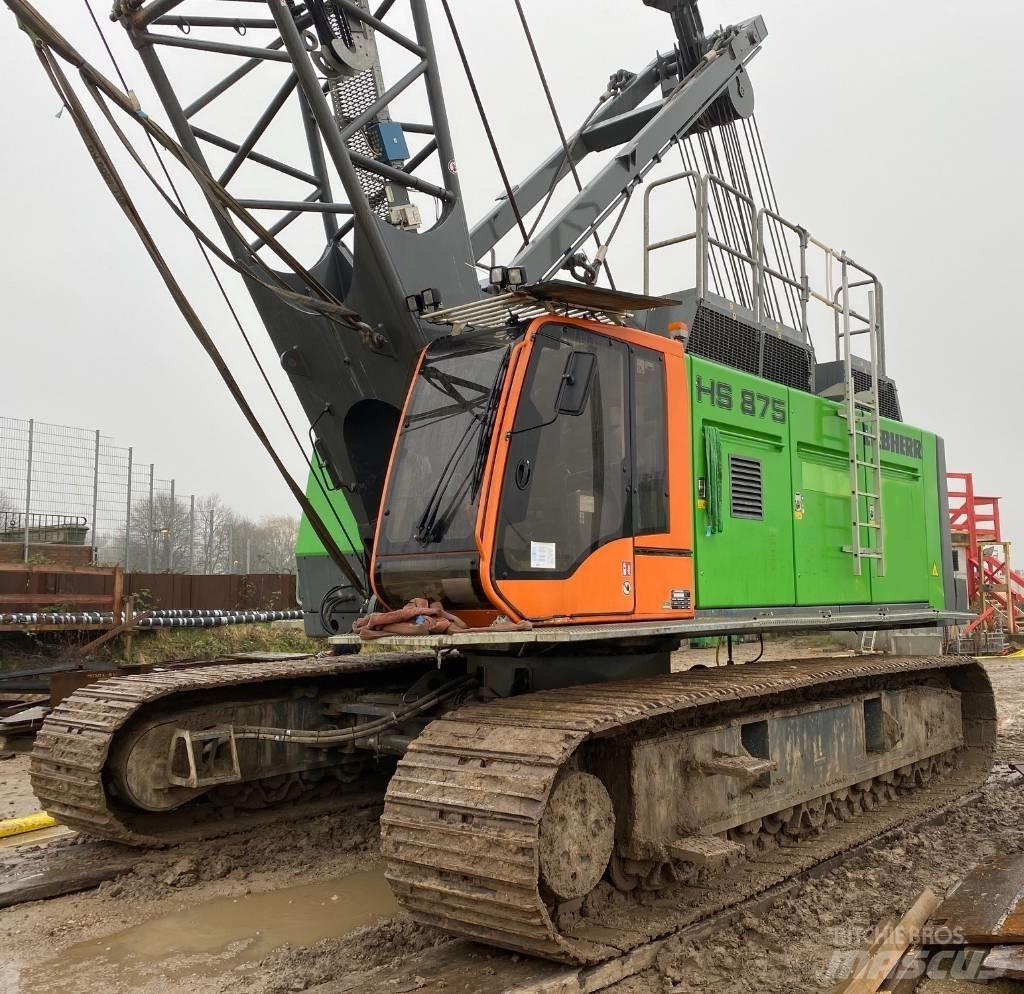

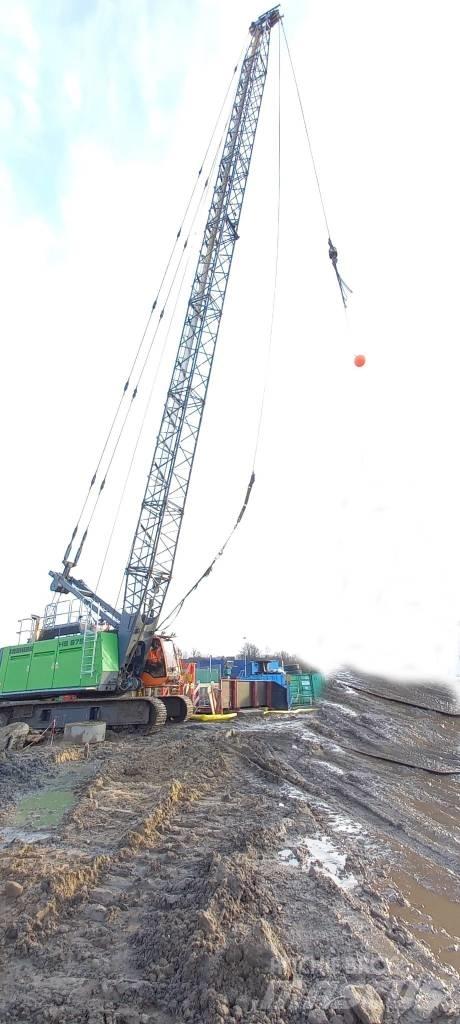

Liebherr HS 875 HD
Hind km-ta
Hind kokkuleppel
Trüki
INFO
Tooterühm
Trossekskavaatorid
Mark / mudel
Liebherr HS 875 HD
Tootmisaasta
2016
Töötunnid
3,900 h
Riik
Saksamaa
Üldine hinne
1
2
3
4
5
Mascus ID
C05EC0D8
DETAILID
Seerianumber
185176
Viimane ülevaatus
2022-02-01
Varasemaid omanikke
1
Täismass
93,000 kg
Mootori võimsus
450 kW (612 hj)
Mootori tootja
Liebherr D9508 AZ
Heitmestandard
Stage IIIA
Transpordimõõtmed (p x l x k)
14.1 x 4 x 3.6 mm
Originaalvärv
ja
Toodetud
Austria
Tarnetingimused
EXW
Sertifikaadid
EPA Sertifikaat, CE sertifikaat
Muu teave
1 X used Liebherr HS 875HD / Ser. No. 185176
Year of construction 2006 / rebuild by Liebherr 2016-2017 with 16.000 operating hours,
service history
2007 Delivery and handover to customer water engineering, only the entire superstructure of the Liebherr HS 875HD was delivered.
2007 Installation on a working ship, firmly mounted on a throwing pillar
2016 Repurchase Liebherr and rebuilding as follows,
- Recovery as a crawler / dragline for use in diaphragm wall work, dragline and crane work.
- Completely new undercarriage
- All winches were exchanged from 12 ton to 30 ton winches new
- Completely new boom approx. 35.5m (the old one was worn out)
- All 4 main pumps were replaced with new ones
- Installation of a new measuring device for diaphragm wall
- Exchange of many other parts, new for old
2017 Sale to customer special foundation engineering
- Complete service history available
2022 Sale to GDS Hamburg
Hours approx. 20082 but hours after rebuilding originally only 3.600
2 x 30 ton winches
winch specification
Version 30 t
Free fall yes
Cable pull (nominal load) 300 KN
Rope diameter 36 mm
1 x main boom extension 6 m
1x main boom joint, 4.2 m
1x main boom section, 3 m
1 x main boom extension 6 m
1 x main boom extension 12 m
1 x Boom Header 6.4m
1 x boom head HS 875 HD 2.7m
Total length of the jib 35.5 m
1 x single hook 25 tons
Gripper calming winch orig. Liebherr 3.5 tons
Hydraulically adjustable chassis
Base plates 1000mm
Total weight about 93 tons
German Dredger Services GmbH
Brandstücken 18 22549 Hamburg Hamburg Saksamaa
