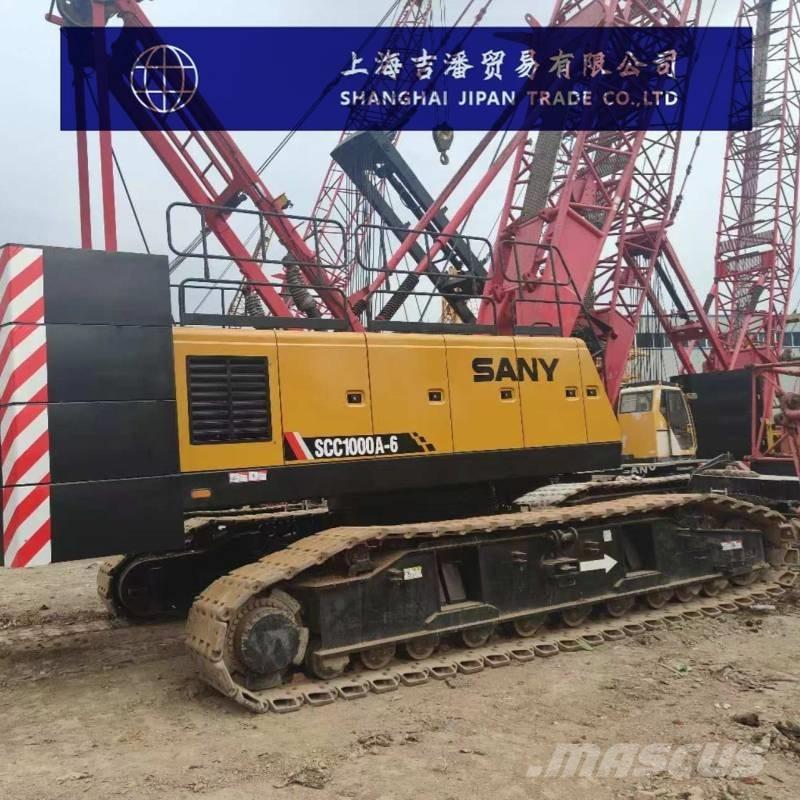

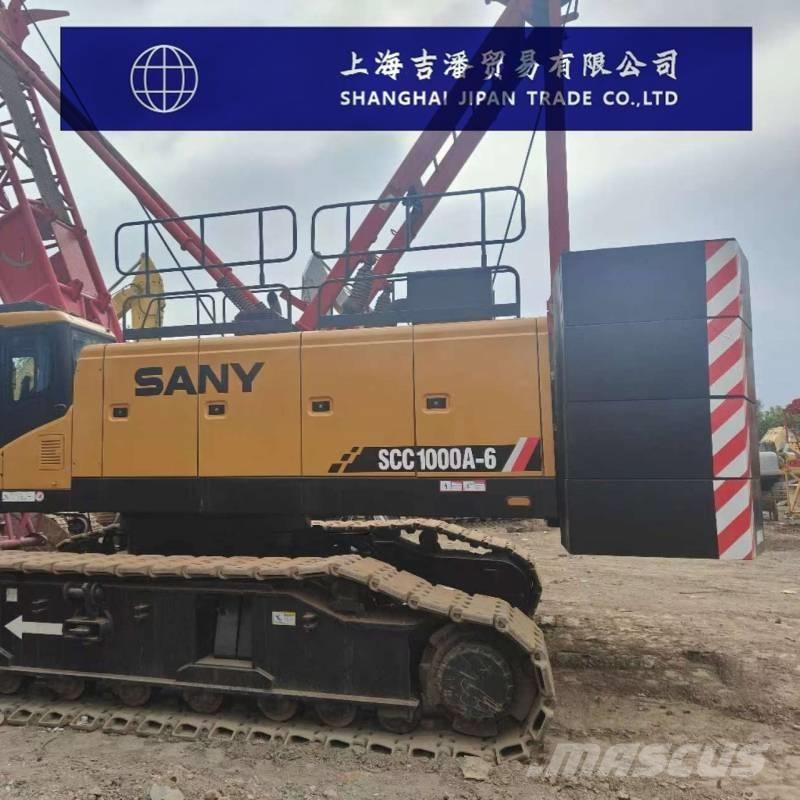

Sany SCC 1000 A-6

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting parameters Maximum rated lifting capacity: 100 tons Maximum main arm length: 57 meters Maximum lifting moment: 412t·m Speed parameter Maximum single-rope speed of the hoist: 135m/min Maximum rotational speed: 2.4r/min Maximum walking speed: 1.6km/h Weight parameter The weight of the rear counterweight is 32 tons Maximum counterweight: 32 (rear counterweight) +7.8 (central counterweight) t Ground pressure: 0.085Mpa Power parameters Engine model: Yuchai A07 Maximum engine power: 191/2200kW/rpm Maximum engine torque: 1080/1600N·m/rpm Dimensional parameters Gauge:4.6 meters
