Manitowoc MLC100-1

Hind km-ta

Compnay LOGO
Images7
Manitowoc MLC100-1 Roomikkraanad
Manitowoc MLC100-1 Roomikkraanad
Manitowoc MLC100-1 Roomikkraanad
FavoriteLemmik
shareJaga
Save searchOtsingu salvestamine
Trüki

INFO

Tooterühm
Roomikkraanad
Mark / mudel
Manitowoc MLC100-1
Tootmisaasta
2022
Asukoht
Florida, USA, Florida
Riik
Ameerika Ühendriigid
Üldine hinne
1
2
3
4
5
Mascus ID
F6DFD451

HIND

Vali valuuta

DETAILID

Inventarinumber
963
Tõstevõime
110,000 kg
Tõstekõrgus
6,096 cm
Muu teave

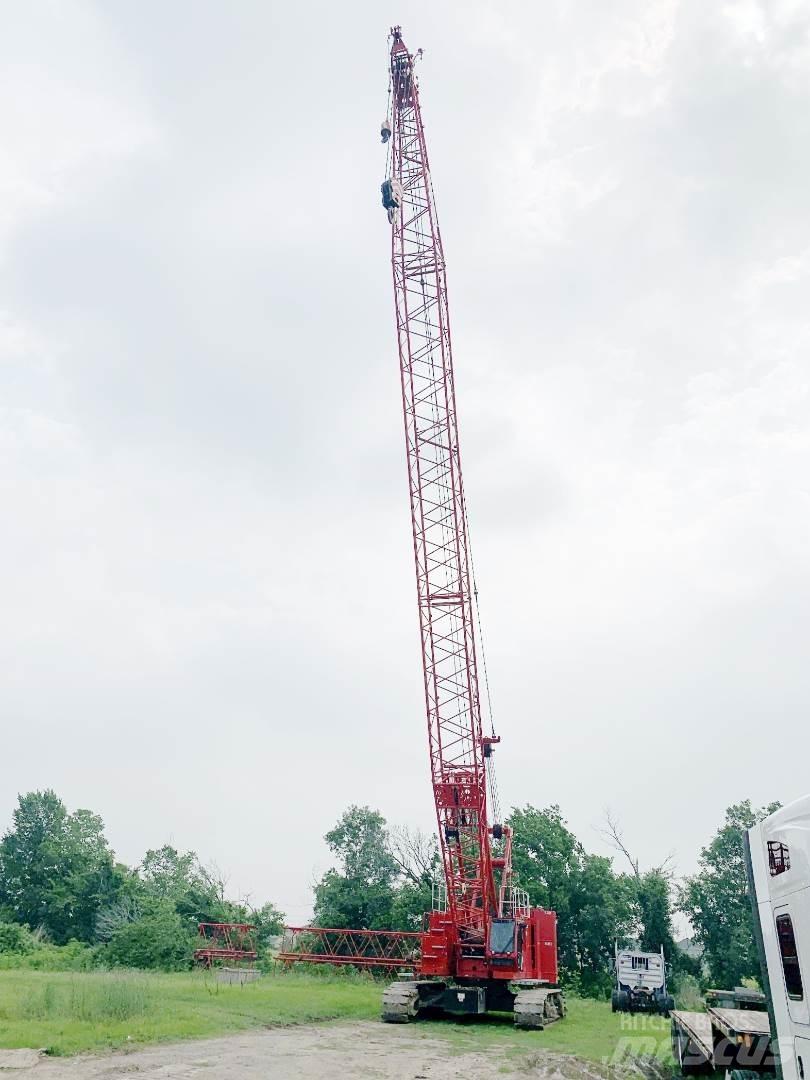

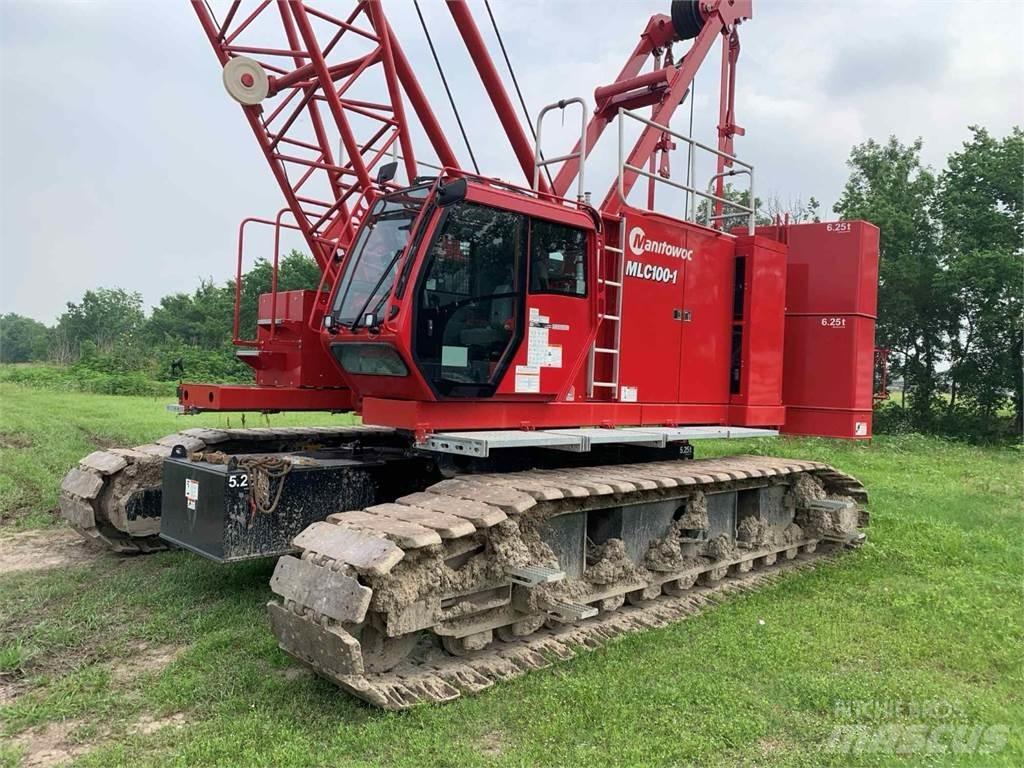

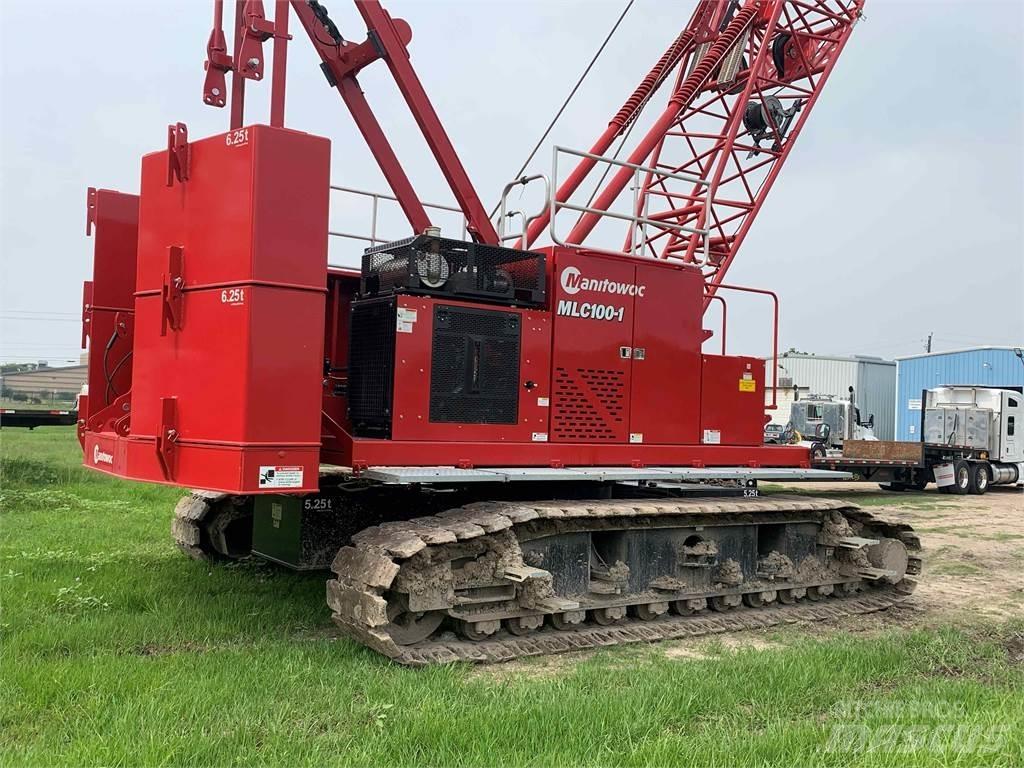

2022 Manitowoc MLC100-1, 110 Ton, Lattice Boom Crawler Crane; CranesList ID: 963, 200' No. 290 Tubular Chord Main Boom withDetachable Upper Boom Point. No. 290 boom utilizes wire rope pendants. Spring cushioned boom stop and electronic automatic boom stop standard. 40' Jib, Main and Auxiliary Winches With 26mm Diameter Wire Rope, Drum Rotation Indicator, with Rated Capacity Limiter/Rated Capacity Indicator (RCL/RCI) and Anti-Two Block, The Crane Control System (CCS) offers a user-friendly interface, two full graphic displays mounted vertically for better visibility, a jog dial for easier data input and ergonomic joysticks. Block-up limit control is standard for hoist and whip lines. Travel and swing alarms are standard, Gantry - The 8 part boom hoist reeving is reeved between the 5 sheave gantry and 4 sheave equalizer, with the dead end on the gantry. When used with optional self-erect sheave in the boom butt the machine is capable of installing carbody counterweights, stacking the upperworks counterweights and assembling the boom and jib. The gantry is also utilized to lift the entire upperworks counterweight assembly into place, controlled by remote control, Hook Ball and Hook Block, Swing System - Independent single swing drive mounted in rotating bed is powered by a hydraulic motor driving a spur gear through a planetary reduction with internal brake, 96,170# Counterweights, Wind Anemometer & Boom Top Position Light, Operator’s Cab - New wider cab provides 10% increased operator legroom. Fully enclosed and galvaneeled steel insulated module is equipped with sliding door, large safety glass windows on all sides and roof. Signal horn, cab space heater, front and roof windshield wipers, air conditioning, dome light, sun visor and shade, fire extinguisher and air circulating fan are standard, Cab Radio, 17' 1" wide Manitowoc Carbody, Cummins Model QSB6.7 Tier 4 Final (Stage IV), 6 cylinder diesel, 300 hp (223 kW) at 2100 governed RPM Diesel Engine, Crawler Assemblies are 21' 3" long with 3' crawler pads Carbody - High strength fabricated steel assembly utilizing swing away carbody beams and two hydraulic cylinders for extending and retracting of crawlers, Approximately 709 hours showing as of 2.2025, Level Indicators, ... IN FLORIDA! Näita veel

Craneslist

3350 E. 7th ST #512 90804 Long Beach California Ameerika Ühendriigid
