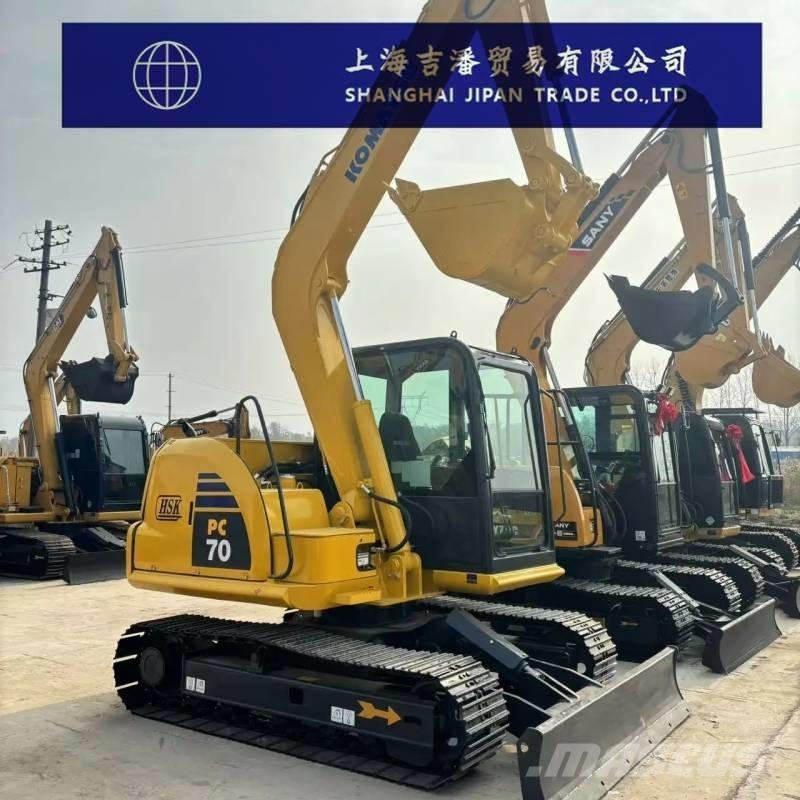

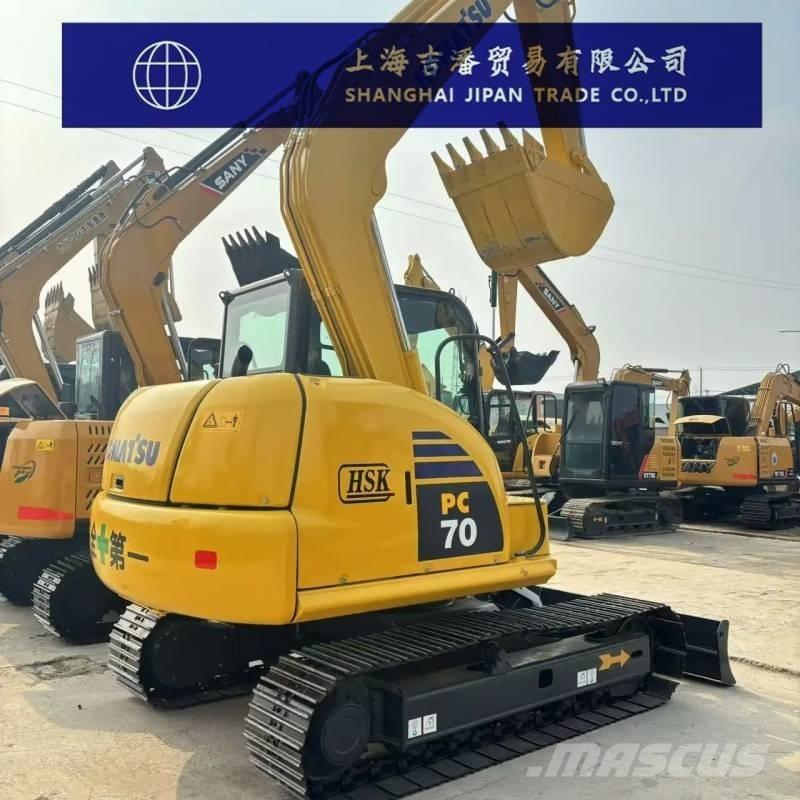

Komatsu PC 70
Hind km-ta
Trüki
INFO
Tooterühm
Roomikekskavaatorid
Mark / mudel
Komatsu PC 70
Tootmisaasta
2024
Töötunnid
520 h
Riik
Hiina
Üldine hinne
1
2
3
4
5
Mascus ID
2A39DA24
HIND
Vali valuuta
DETAILID
Inventarinumber
1
Jõuallika tüüp
Diisel
Seerianumber
1
Varasemaid omanikke
1
Viimane ülevaatus
2025-08-08

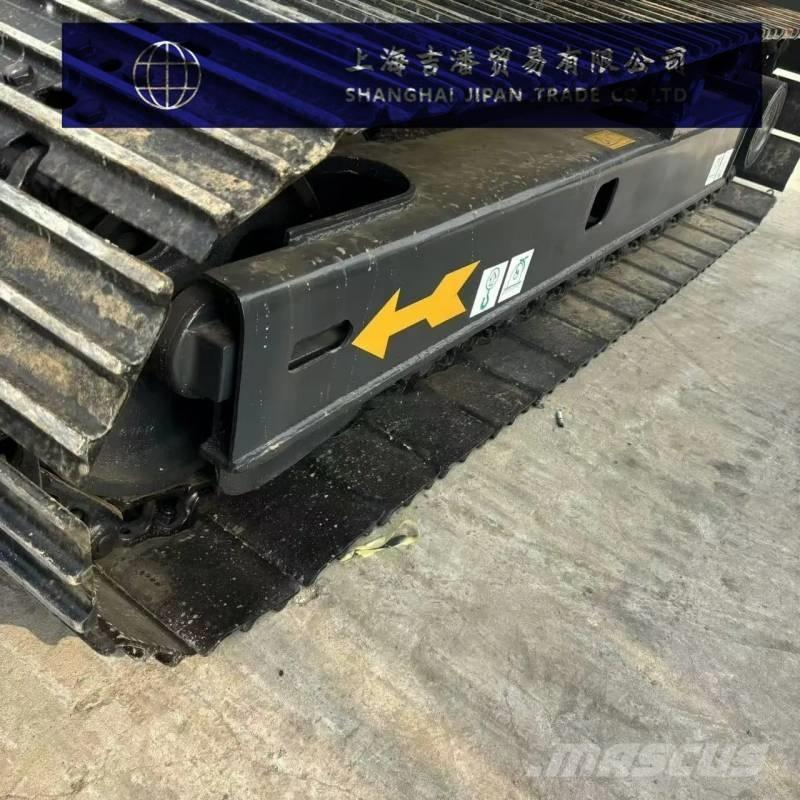

Alusvankri seisukord
Good Condition
Mootor
Original
Täismass
6,500 kg
Mootori võimsus
48.5 kW (65.9 hj)
Mootori tootja
KOMATSU
Registreerimisnumber
1
Heitmestandard
Stage V
Kopa mahtuvus
0.39 m3
Roomiku laius
450 mm
Lisahüdraulika tootlikkus
172 l/min
Maksimaalne kiirus
5.50 km/h
Transpordimõõtmed (p x l x k)
6080 x 2225 x 2620 mm
Originaalvärv
Original Yellow
Varre pikkus
1,650 mm
Seisukord/Garantii
1 Year
Toodetud
Jaapan
Tarnetingimused
FCA, FOB, CIF, EXW
Sertifikaadid
EPA Sertifikaat, CE sertifikaat
Lisad
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Lisad
Twig wire box
Kliimaseade
Kiirühendus
Õhu eelpuhasti
Sõelkopp
Vilkur
Lisavarustus
Juhtkang
Standard kaevekopp
Kaablikopp
kraavikaevamise / tasandamise kopp
Muu teave
Specification
Power:Traditional power
Tonnage (tons)7
The overall working weight of the machine (kg) is 6500
Bucket capacity (m³):0.32-0.39
Boom length (mm):3710
The length of the bucket pole (mm) is 1650
Performance
Rotational speed (rpm)11
Walking speed (km/h):4.5/2.8
Grounding specific pressure (Kpa)30.2
The bucket digging force (kN) is 54.8
The digging force of the boom (kN) is 38.2
Maximum traction force (kN)56.4
Power system
Engine model: Komatsu SAA4D95LE-5
Rated power (kw/rpm)48.5/1950
Displacement (L):3.26
Number of cylinders:4
Bore × stroke (mm)95*115
The cooling method is water cooling
The working mode is turbocharged and post-cooled
Hydraulic system
The main pump type is a variable piston pump
The maximum flow rate of the main pump (l/min) is 172
Pilot oil circuit (MPa)2.9
Working hydraulic oil circuit (Mpa)24.5
Walking hydraulic circuit (Mpa)24.5
Rotary hydraulic circuit (Mpa)21.1
Boom cylinder - Number × cylinder bore × stroke (mm)1-115*840
Bucket rod cylinder - Number × cylinder bore × stroke (mm)1-100*865
Bucket cylinder - Number × cylinder diameter × stroke (mm)1-90*710
Oil capacity
Fuel tank (L)130
Hydraulic oil tank (L)95
Engine oil change rate (L)12.5
Main body size
Total transportation length (mm):6080
Total transportation width (mm)2225
Total transportation height (mm):2620
Track grounding length (mm)2130
The total length of the track (mm) is 2765
Track plate width (mm)450
The total width of the track (mm) is 2150
Track gauge (mm)1700
Minimum ground clearance (mm)350
Counterweight ground clearance (mm)750
The rear end rotation radius (mm) is 1750
Number of sprocket rollers (single side) (pieces)1
Number of track plates (single side) (pieces)38
Number of supporting wheels (single side) (pieces)5
Scope of work
Maximum excavation radius (mm):6360
The maximum excavation radius (mm) of the shutdown surface is 6220
Maximum excavation depth (mm):4100
Maximum excavation height (mm):7150
Maximum unloading height (mm):5015
Maximum vertical excavation depth (mm):3505
