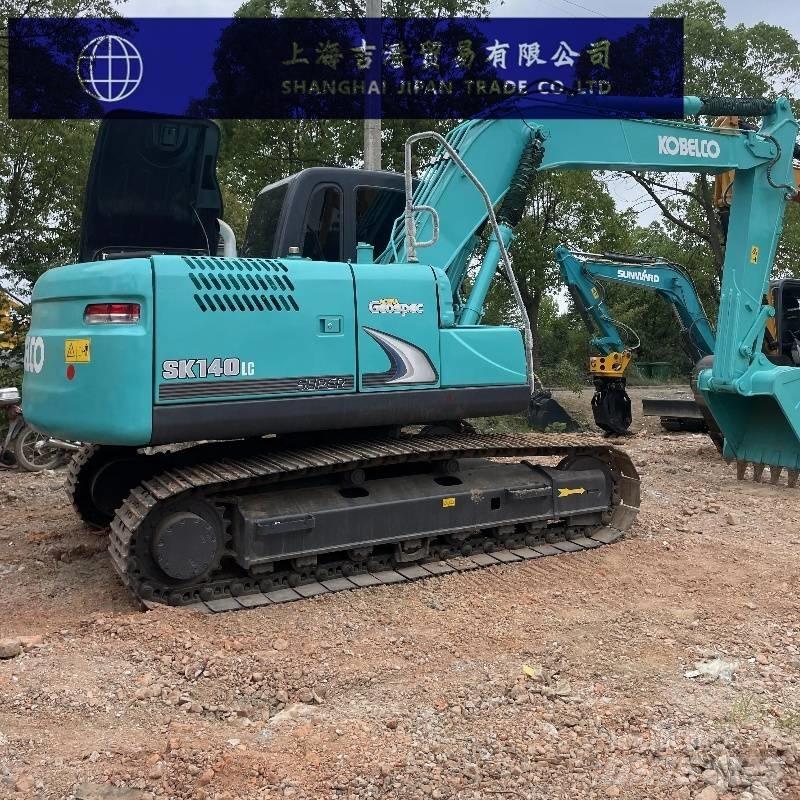

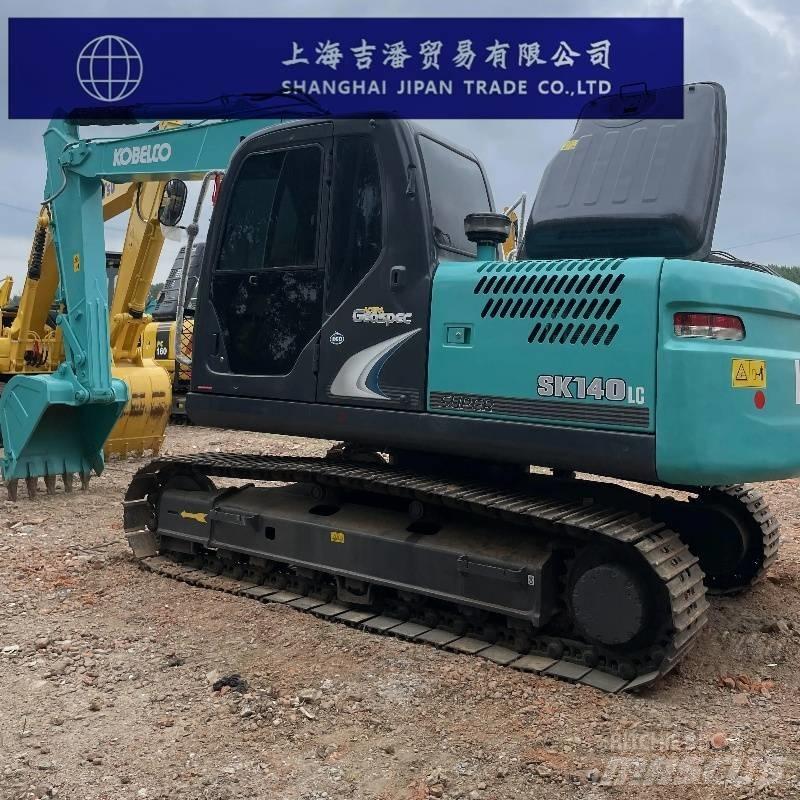

Kobelco SK 140

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameters and configuration of Kobelco SK140LC excavator Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons) : 14 The working weight of the entire machine (kg) is 13,200 Bucket capacity (m³)0.57(standard) Boom length (mm) : 4680 Boom length (mm)2380(standard) Performance Rotational speed (rpm)11 Rotational torque (Nm)39.9 Walking speed (km/h)3.4/5.6 Climbing ability (%)70 Grounding specific pressure (Kpa)45 Bucket digging force (kN)90.1 The digging force of the boom (kN) is 64.4 Maximum tractive force (kN)139 Power system Engine model: Mitsubishi D04FR-KDP2TAAC Rated power (kw/rpm)74/2000 Maximum torque (N.m)375/1600 Displacement (L) : 4.249 Number of cylinders (4) Bore × stroke (mm) : 102*130 The working mode is direct injection, water-cooled, four-stroke, turbocharged, and built-in intercooler Hydraulic system The main pump type is a double variable axial piston pump + pilot gear pump The rotary hydraulic motor type is axial piston type The walking hydraulic motor type is a two-set two-speed variable piston type The maximum flow rate of the main pump (l/min) is 2*130 Pilot pump flow rate (L/min)1*20 Working hydraulic oil circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)28 Control the hydraulic circuit (Mpa)5 Boom cylinder - Number × cylinder bore × stroke (mm)2*100*1092 Bucket rod cylinder - Number × cylinder bore × stroke (mm)1*115*1120 Bucket cylinder - Number × cylinder diameter × stroke (mm)1*95*903 Oil capacity Fuel tank (L)275 Hydraulic oil tank (L)101 Hydraulic System (L)171 The engine oil change rate (L) is 18.5 Coolant (L)14 Main body size Total transportation length (mm)7790 Total transportation width (mm) : 2490 Total transportation height (mm)2870 The total height of the cab (mm) is 2870 The total length of the track (mm) is 3750 Track plate width (mm)500 The total width of the track (mm) is 2490 Track gauge (mm)1990 Minimum ground clearance (mm)440 Counterweight ground clearance (mm)910 The minimum turning radius (mm) of the front-end working device is 2620 The rear end rotation radius (mm) is 2190 Number of track plates (single side) (pieces)46 Scope of work Maximum excavation radius (mm) : 8340 The maximum excavation radius (mm) of the shutdown surface is 8190 Maximum excavation depth (mm) : 5520 Maximum excavation height (mm) : 8500 Maximum unloading height (mm) : 6090 The maximum vertical excavation depth (mm) is 4880 The maximum effective excavation depth (mm) is 5290
