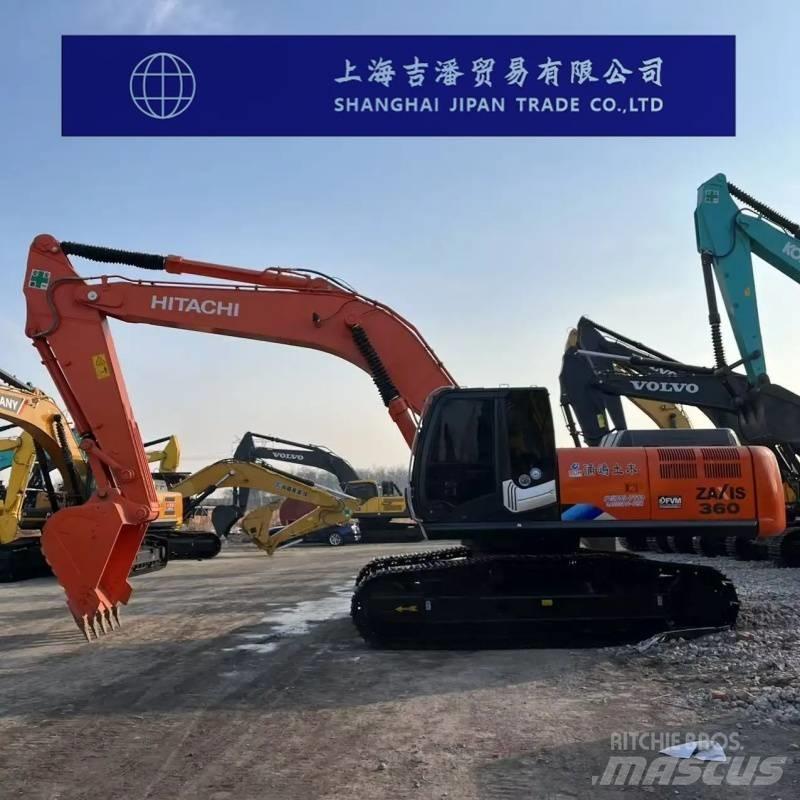

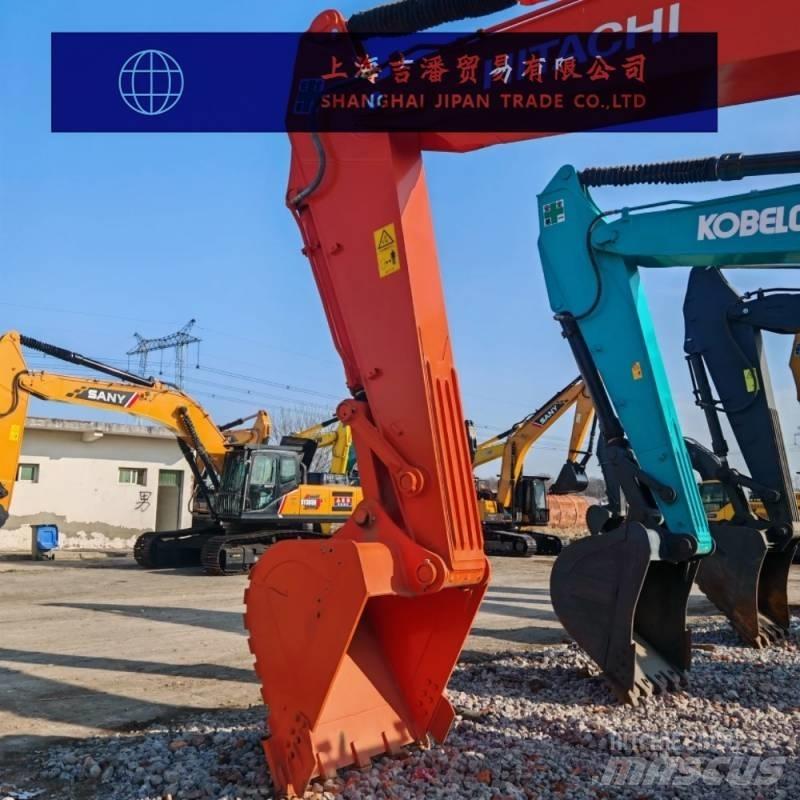

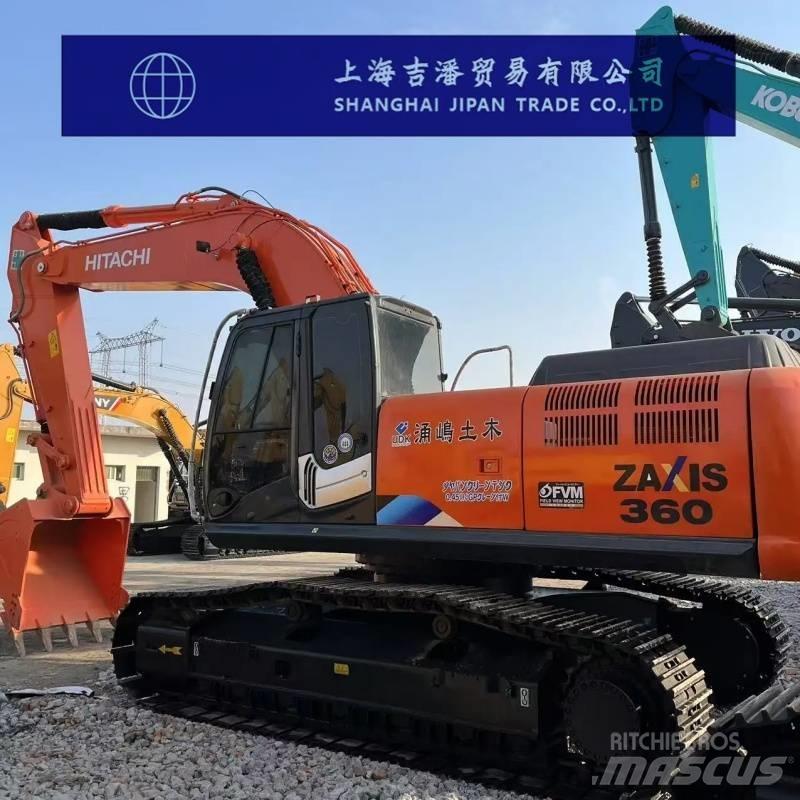

Hitachi ZX 360

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Hitachi ZX360 excavator parameter configuration Specification The overall working weight of the machine (kg) is 33,900 Bucket capacity (m³)1.6(Rock narrow bucket) Boom length (mm)6.4 Bucket rod length (mm)3.2H type (4 reinforcing ribs) Origin: Japan Tonnage (tons)36 Power, traditional power Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Grounding specific pressure (Kpa)68 Rotational speed (rpm) : 11.8 Walking speed (km/h) : 3.2/5.0 Climbing ability (%)70/35° Bucket digging force (kN)237 The digging force of the boom (kN) is 172 Power system Engine model: ISUZU AH-6HK1XQA Rated power (kw/rpm)184/2000 Displacement (L) : 7.79 Number of cylinders (units)6 Bore × stroke (mm) : 115×125 The cooling method is water cooling Working forms: direct injection, turbocharged, with intercooler Hydraulic system The main pump type is variable axial piston pump ×2+ gear pump ×1 The main overflow set pressure (Mpa) is 31.4 Maximum flow rate of the main pump (l/min) : 2×288+30.2 The type of walking hydraulic motor is variable axial piston motor ×2 Rotary hydraulic motor type: Axial piston motor ×1 Working hydraulic oil circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)32.4 Pilot oil circuit (MPa)3.9 Boom cylinder - Number × cylinder bore × Stroke (mm)146×100 Bucket rod cylinder - Number × cylinder diameter × stroke (mm)170×115 Bucket cylinder - Number × cylinder diameter × Stroke (mm)140×95 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)560 Hydraulic oil tank (L)154/ full 272 Engine oil change volume (L) : 36 Coolant (L)32 Main body size Total transportation length (mm) 10,970 Total transportation width (mm) : 3190 Total transportation height (mm) : 3230 The total height of the cab (mm) is 3140 The ground clearance of counterweight (mm) is 1160 Track grounding length (mm)3730 The total length of the track (mm) is 4650 Track plate width (mm)600 The total width of the track (mm) is 3190 Track gauge (mm) : 2590 Minimum ground clearance (mm)500 Rear end rotation radius (mm)3320 Scope of work Maximum excavation radius (mm) : 11100 Maximum excavation depth (mm) : 7360 Maximum excavation height (mm) : 10250 Maximum unloading height (mm) : 7150 Maximum vertical excavation depth (mm)6460 Width × height (mm) of the bulldozer board without a bulldozer shovel Bulldozer lift or push deep (mm) without a bulldozer
