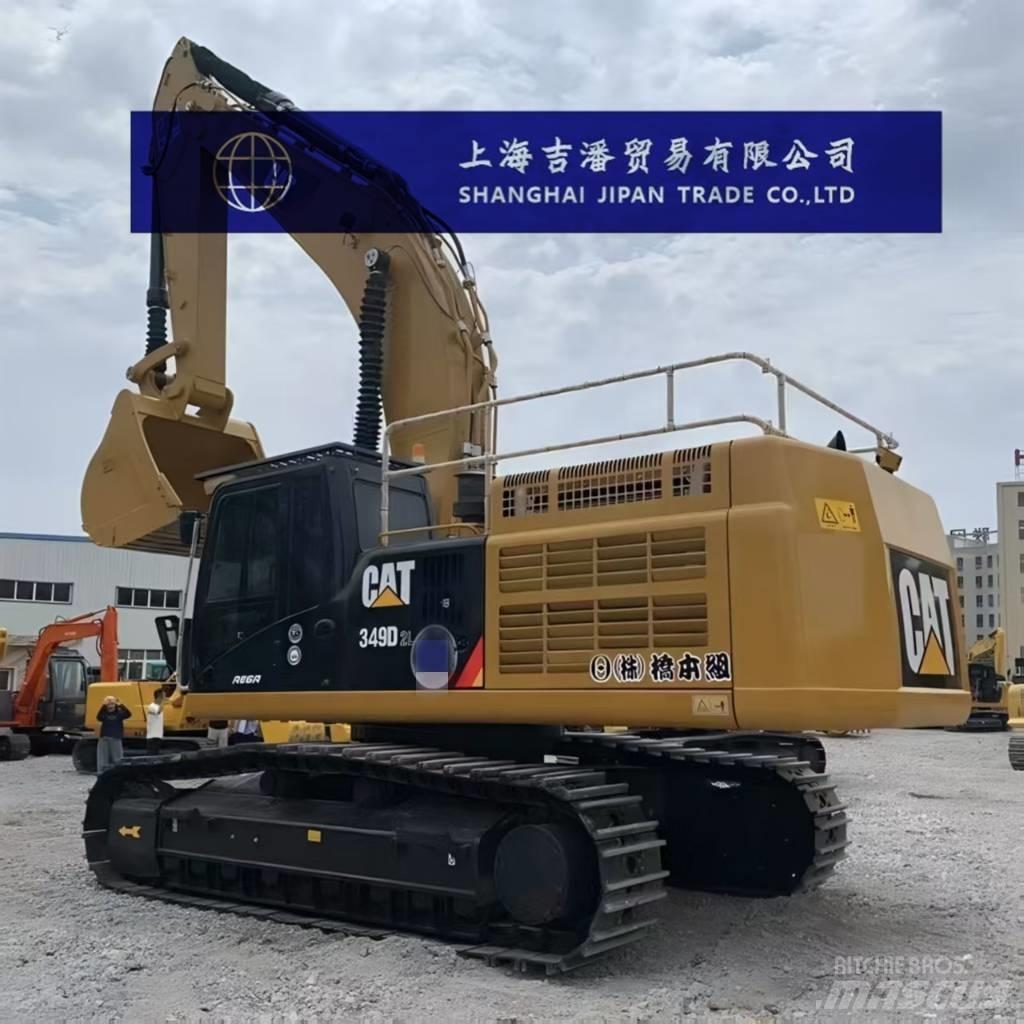

CAT 349 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)49 整机工作重量(kg)46285 铲斗容量(m³)1.8-3.11 动臂长度(mm)7400/6900/6550 斗杆长度(mm)4300/3900/3350 原产地美国 性能 回转速度(rpm)8.7 行走速度(km/h)4.5 动力系统 发动机型号卡特彼勒Cat C13 ACERT 额定功率(kw/rpm)283 排量(L)12.5 缸径×行程(mm)130×157 冷却方式水冷 液压系统 主泵最大流量(l/min)734 先导泵流量(L/min)43 先导油路(MPa)4.11 工作液压油路(Mpa)35 行走液压回路(Mpa)35 回转液压回路(Mpa )31.4 主溢流设定压力(Mpa)35 动臂油缸-个数×缸径×行程(mm)1-160×1575 斗杆油缸-个数×缸径×行程(mm)1-190×1778 铲斗油缸-个数×缸径×行程(mm)1-160×1356 油类容量 燃油箱(L)705 液压油箱(L)243 液压系统(L)570 发动机油更换量(L)42 冷却液(L )35.5 主体尺寸 运输总长度(mm)12450 运输总宽度(mm)3640 运输总高度(mm)3680 驾驶室全高(mm)3210 履带总长度(mm)5070 履带板宽度(mm)750 履带总宽度(mm)3640 履带轨距(mm)2740 最小离地间隙(mm )510 配重离地间隙(mm)1320 后端回转半径(mm )3770 作业范围 停机面最大挖掘半径(mm)12940 最大挖掘深度(mm)8920 最大卸载高度(mm)7870 最大垂直挖掘深度(mm)5860 最大有效挖掘深度(mm)8790
