Tooterühm
Puurimisseadmete tarvikud ja varuosad
Mark / mudel
Atlas Copco COP 1838 HE T45
Tootmisaasta
2002
Lisavalikud
Renoveeritud
Riik
Eesti
Üldine hinne
1
2
3
4
5
Mascus ID
F61F42F6

HIND

Vali valuuta

DETAILID

Varasemaid omanikke
1
Täielik hooldusajalugu
Jah
Kahjustatud
Töökorras
Seerianumber
AVO02D016E
Transpordikaal
174 kg
Transpordimõõtmed (p x l x k)
1098 x 316 x 223 mm
Tarnetingimused
EXW
Sertifikaadid
CE sertifikaat
Muu teave

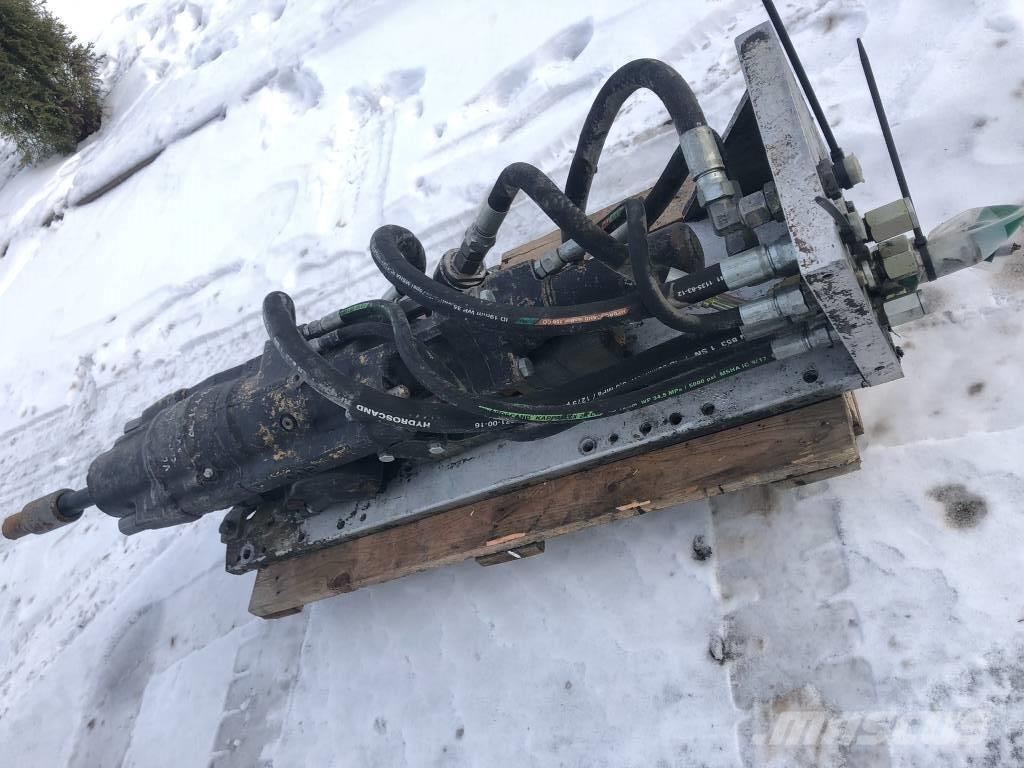

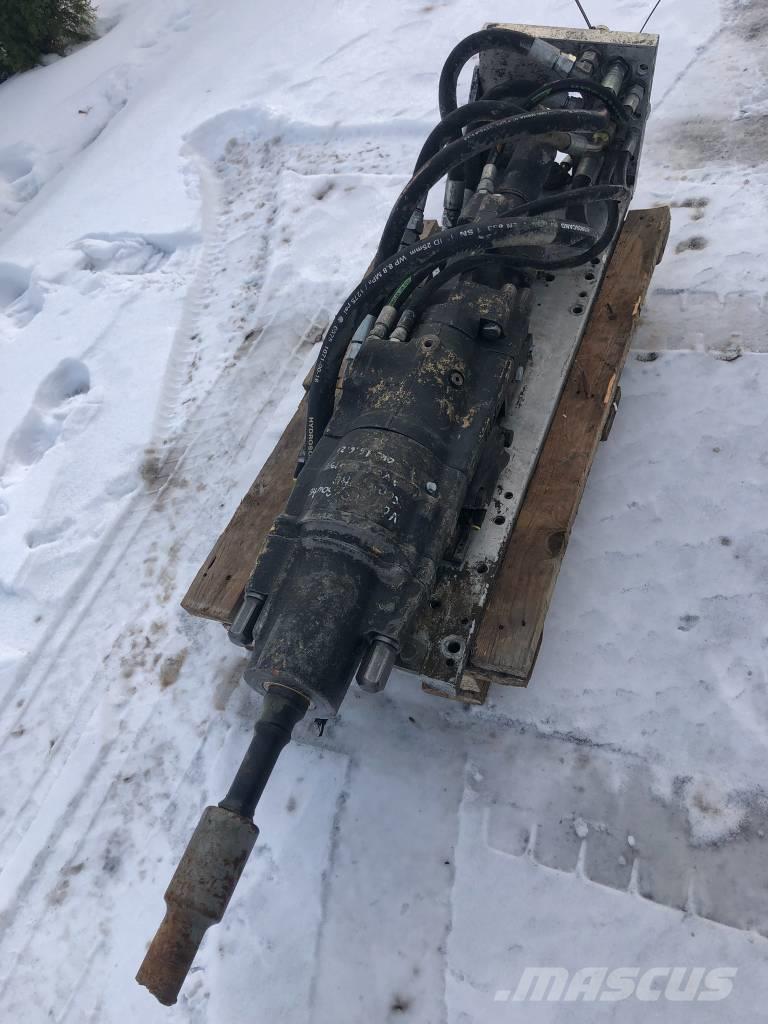

The COP 1838HE is a hydraulic rock drill for larger holes in mining. Made by Atlas Copco / Epiroc. - Impact power (maximum) 19 kW (25.5 hp) - Input power to rock drill (maximum) 32 kW (43 hp) - Hydraulic pressure (maximum) 230 bar (3336 psi) - Flow rate 71 - 90 l/min (2.5 - 3 cfm) - Impact frequency 42 - 50 Hz - Rotation range 0 - 135 rpm - Torque (maximum) 1550 Nm (1143 lbf - ft) - Working pressure (maximum) 200 bar (2901 psi) - Oil consumption 75 l/min (2.6 cfm) Recently overhauled and serviced, tested on machine. Ready to use! Lot's of parts were changed: 1 x 3115915392 SEAL KIT 1 x 3115211900 GUIDE 1 x 3115182201 DIAPHRAGM 1 x 3115192602 DIAPHRAGM 1 x 3115158200 DRIVER 1 x 3115082100 SHAFT 1 x 3115347385 HYDRAULIC MOTOR 1 x 3115212400 PISTON GUIDE 3 x 3115029702 SHIM 1 x 3115290200 NUT 1 x 3115290100 DIAPHRA.SUPPORT 1 x 3115290300 COMPRESS.SPRING 2 x 3115376800 VALVE 1 x 3115227580 HOLDER SET 3 x 0147148103 HEX HEAD SCREW 4 x 0147143803 SCREW, HEX HEAD 4 x 0147140103 HEX HEAD SCREW 1 x 0509022100 ROLLER BEARING 1 x 0509022300 ROLLER BEARING 1 x 3216988400 HOLDER 4 x 3315019508 LOCK WASHER M12 1 x 3115027700 COUPLING 1 x 0335213000 CIRCLIP 1 x 0516150401 NEEDLE BEARING 1 x 0516153800 NEEDLE BEARINGNäita veel
