Ruffneck HP5-30

Hind km-ta

Compnay LOGO
Images10
Ruffneck HP5-30 Muud osad
Ruffneck HP5-30 Muud osad
Ruffneck HP5-30 Muud osad
FavoriteLemmik
shareJaga
Save searchOtsingu salvestamine
Trüki

INFO

Tooterühm
Muud osad
Mark / mudel
Ruffneck HP5-30
Seisund
Kasutatud
Asukoht
Leduc
Riik
Kanada
Mascus ID
963DADD1

HIND

Vali valuuta

DETAILID

Inventarinumber
80841
Muu teave

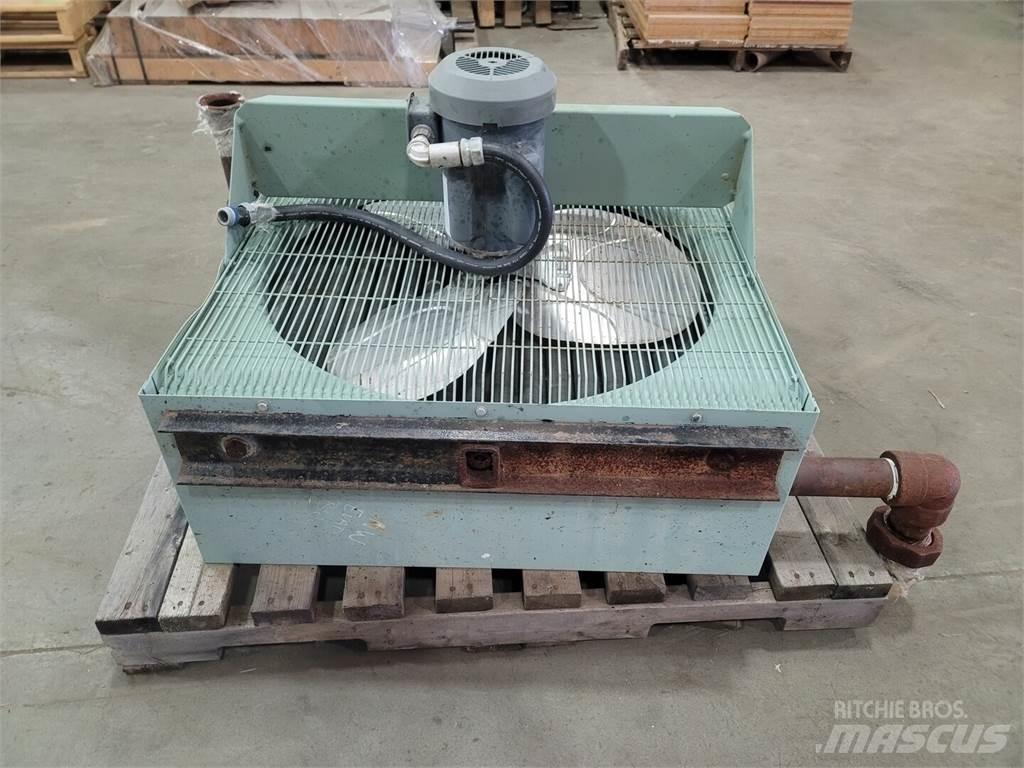

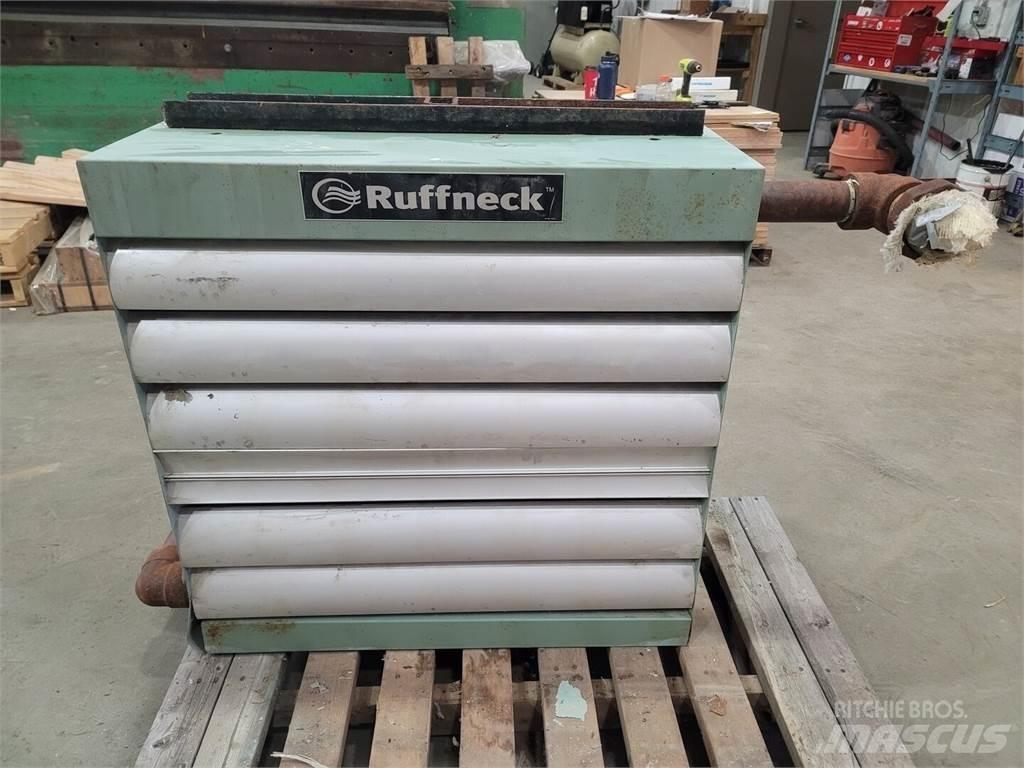

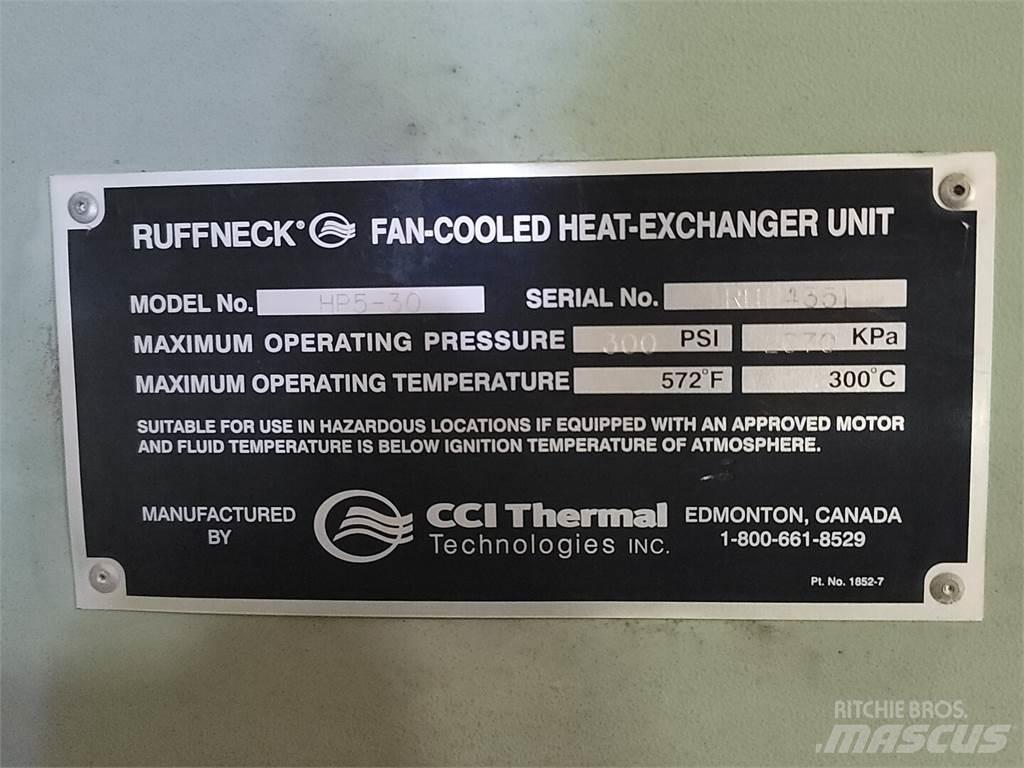

Fan-Cooled Heat-Exchanger Unit HP5-30 Title: Fan-Cooled Heat-Exchanger Unit HP5-30 SKU: 80841 Model: HP5-30 Condition: Used GeneralCFM:4569cfm Fan Size:30 Made In: CANADA Dimensions: 26.00 (H) x 56.00 (W) x 38.00 (L) inches Size: HP5 Series: HP Fan Size: 30" Air Delivery: 4569 cfm Air Velocity: 814 fpm Air Throw: 70 ft. ... 15 psi stream Propeller Fan: 3 Wing Aluminum - 30 x 5/8-inch w/ 16 mm Bore Motor Requirement: 3/4 HP, 1140 RPM, Frame 56 Rigid Base (specify enclosure type, voltage, cycle and phase) Fan Guard: Welded, Wire, Power Coated Epoxy 7/16" (11 mm) probe will not enter. Hanger Connections: 5/8" (16 mm) NC Tap - 4 Holes Cabinet Materials: 0.075" (2 mm) steel Louvre Blades: Anodized Extruded Aluminum Heat Exchanger:- Tube Outside Diameter: 0.625" (16 mm) Tube Wall Thickness: 0.065" (1.65 mm) Average Tube Material: SA 214 Carbon Steel Fin Material: 1050 Aluminum Fins Per Inch: 10 Number of Tubes: 47 Number of Rows: 3 Number of Passes: 1, 3, 5 or 7 Header Material: Min. 0.135" (3.43 mm) Steel Inlet/Outlet: 2" NPT Female Max Operating Pressure: Up to 300 psi Max Operating Temperature: 572 deg. F (300 deg. C)Näita veel

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
1
Aastad Mascuses
Saa teavitusi emaili teel
Näita kõiki Lenmark Industries Ltd kuulutusi
report adTeata kahtlasest kuulutusest
