BIK TC-98
Hind km-ta
Hind kokkuleppel
7
Lemmik
Jaga
Otsingu salvestamineTrüki
INFO
Tooterühm
Muud tõsteseadmed
Mark / mudel
BIK TC-98
Seisund
Uus / kasutamata
Asukoht
Milford, Massachusetts
Riik
Ameerika Ühendriigid
Üldine hinne
1
2
3
4
5
Mascus ID
AFEF959C
DETAILID
Muu teave
BOOM DETAILS

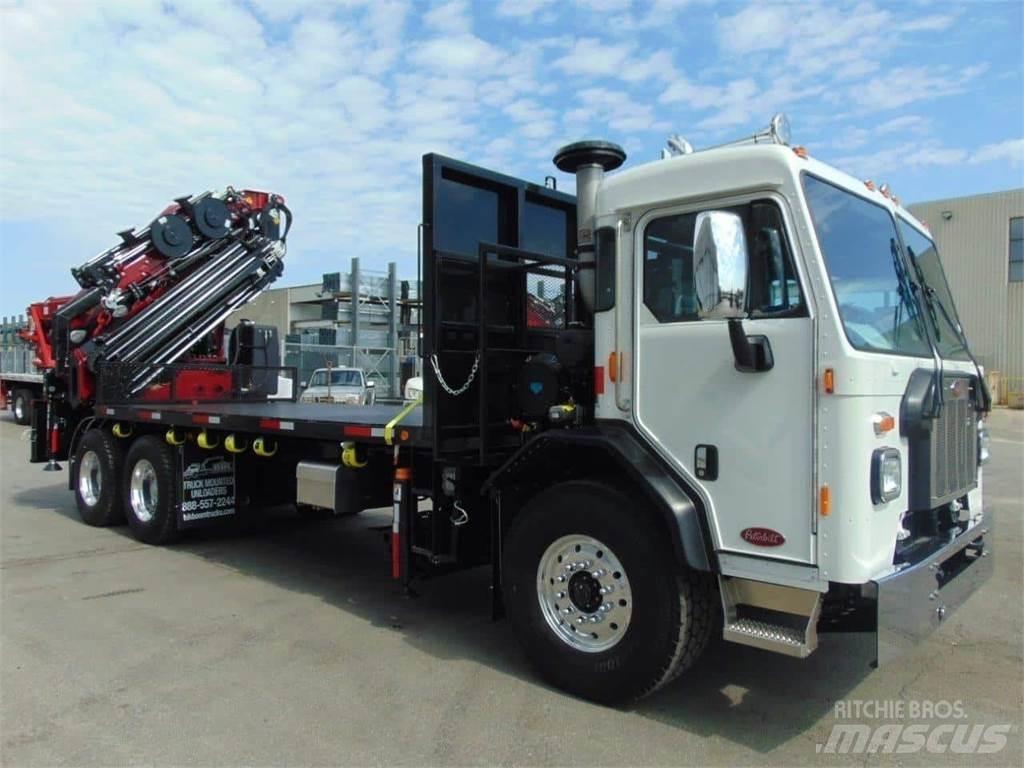

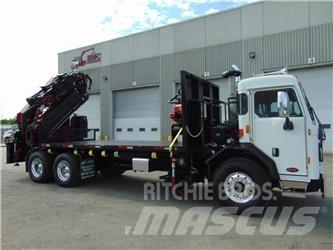

New – BIK Tree-Care Series TC-98 – 54.5 ton/m
Knuckle Boom
6 ext Knuckle Boom w/Detachable 3 ext jib + 1-grapple extn
Including (1) Grapple extension in jib,
Boom Capacity of
2,230 lbs ... 98’ Vertical
Reach
Main Boom Horizontal Capacity:
21,000 lbs ... 14’
10,900 lbs ... 25’ 8”
6,800 lbs ... 38’ 8”
4,830 lbs ... 53’ 6”
Jib Horizontal Capacity:
2,100 lbs ... 63’
1,850 lbs ... 75’ 4”
1,700 lbs ... 82’
Grapple main extension to 86’
“Power-Link”
connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders
Planetary Gear Rotation Motor
& Continuous Boom Rotation
– for maximized slewing torque and reliability
15 Degree negative angle
on main knuckle,
20 degree negative angle
on jib
– Hyd Extra Wide Main outriggers
at base – 25’ 7” total span
Auxiliary Stabilizers
– Extra wide type – 21’ span
, hyd out & down type at rear – Front Bumper Hyd Stabilizer
– 100% stability 360 degrees
Two Hydraulic Oil Coolers
, high pressure return filter and 100 gal custom hydraulic oil tank with Enviro-Friendly
AW-46 weight Hyd Oil
Tandem pump / split valve
pressure system for optimum speed for simultaneous
multi function use
DANFOSS
Proportional Control Valve at Top Seat
SCANRECO
Proportional Radio Remote Control
w/2 batteries, charger
Engineer Stability load tested and certified
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
DECK DETAILS
New – 17’ x 102” Steel Flat Deck:
Steel headboard w/ Side Wrap Winches
Steel Checker plate Floor
Winch bar and holder
Integral 6” sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting
X-braces & support
Deck painted Black
2-Deck access Ladders at Headboard
2-Ladders at rear
Reflectors and Mud-flaps
6 – Sliding Winches and track under deck
TRUCK DETAILS
New – Peterbilt 520 Cab-Over
3-axle Diesel Truck: 64,000 lb GVWR
Cummins Diesel 370 hp, 1,250 ft/lb torque
Allison 6 spd Automatic Trans.
20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
44,000 LB Rears on Neway air ride Suspension, with 11R22.5 tires on alum outer rims
Double frame chassis
54” spread at tandems
Truck Features Include:
Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows, power/htd mirrors, chrome bumper and grill, heated mirrors, eng block heater, painted ext visor, rear wheel lock ups, 80 gal alum fuel tank, etc…
Options Included
:
(5) pcs – 2” PVC stab pads w/holders
(2) pc Alum storage boxes installed
Custom re-enforced manual extension for grapple
New Mecanil SG-280 Graple saw with spare parts
2 to 3 day on site boom feature/function familiarization by a BIK tech
Optional Version –
TC-104 – 104’ Vert Reach Version
Näita veel
BIK Boom Trucks - Milford, MA
177 Central St. 01757 Milford Massachusetts Ameerika Ühendriigid
