INFO
Tooterühm
Muud tõsteseadmed
Mark / mudel
BIK TC-124-XL
Seisund
Uus / kasutamata
Asukoht
Milford, Massachusetts
Riik
Ameerika Ühendriigid
Üldine hinne
1
2
3
4
5
Mascus ID
63CCB6C8
DETAILID
Muu teave
BOOM DETAILS

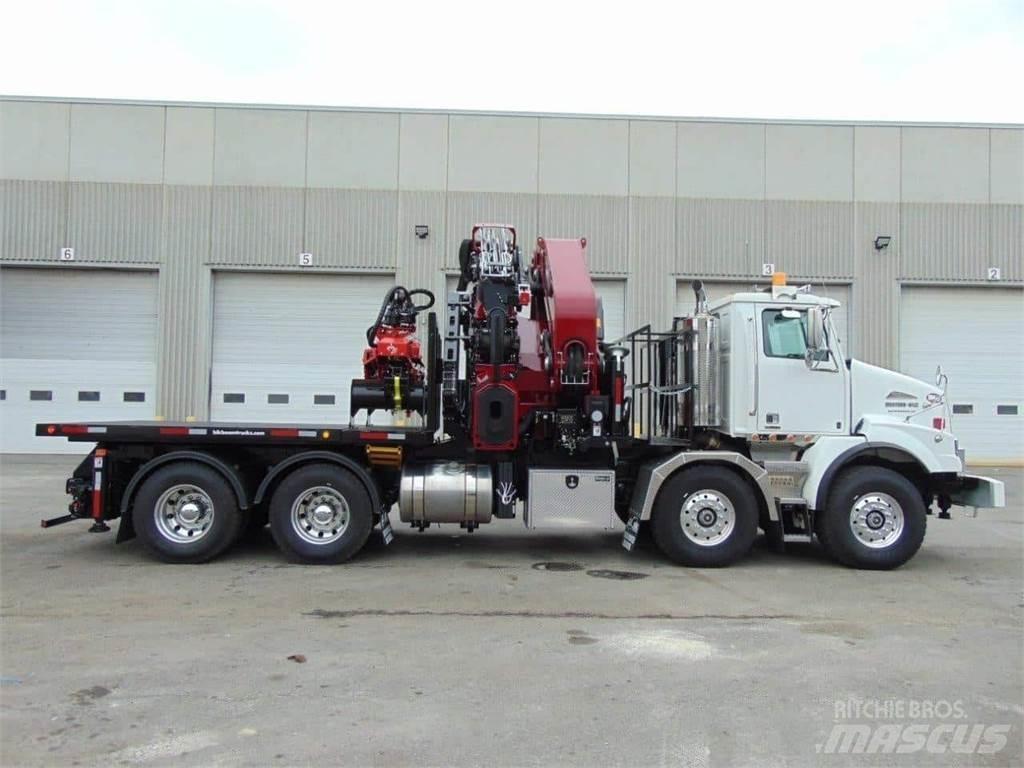

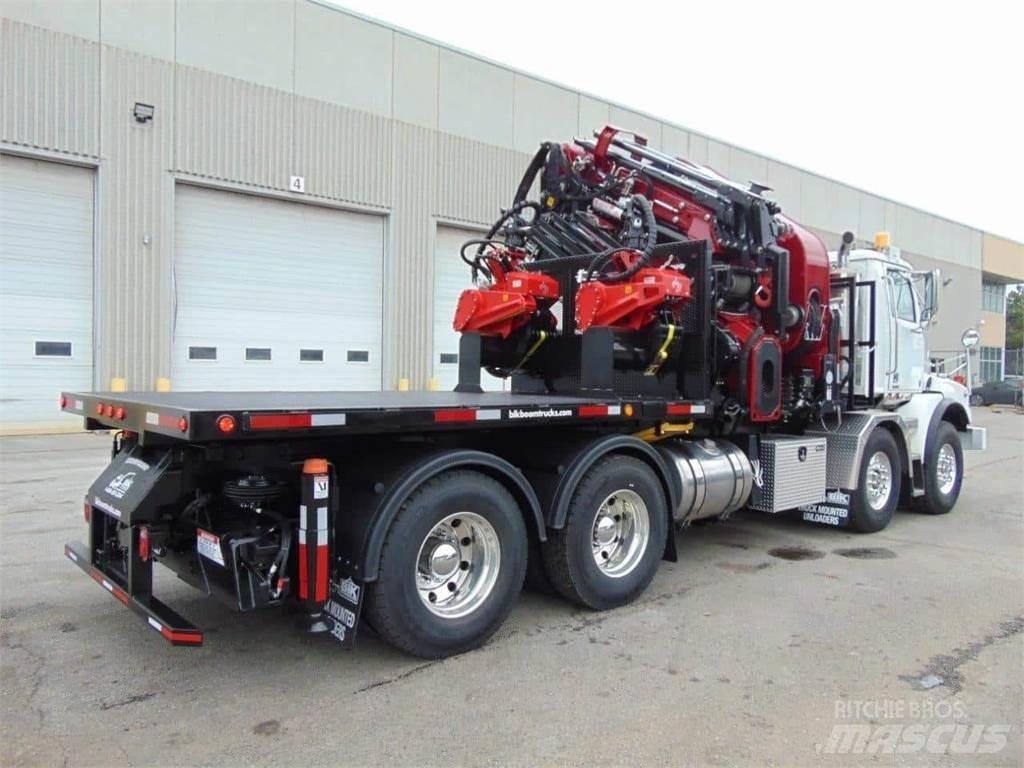

New – BIK Tree-Care Series TC-124-XL – 150 ton/m Knuckle Boom
8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extension
Including (1) Grapple extention in jib
Boom Capacity of 3
,800 lbs ... 124’ Vertical Reach
Main Boom Horizontal Capacity:
46,000 lb ... 16’
27,000 lb ... 26’
18,200 lb ... 38’
12,700 lb ... 50’
9,800 lb ... 64’
Jib Horizontal Capacity:
5,350 lb ... 73’
4,500 lb ... 85’
3,900 lb ... 96’
3,200 lb ... 108’
w/Grapple extn to 112’
PM connecting rods at First Boom and Knuckle, 15degree negative angle at 1st
knuckle, 25 degree negative angle at jib
Continuous Rotation
and Dual Planetary Gear
Rotation
Special Extra High Tensile Steel Structure
Hydraulic Extra Wide Main outriggers
at pedestal – 33’ – 6” span – hydraulic tilting when retracted. Radio controlled
Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
Lifting winch
on boom plumbed to jib
DANFOSS
Proportional Control Valve & SCANRECO
Proportional Radio Remote Control
PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
Scanreco Radio Remote
Control includes: 2-batteries, in-cab charger, back-up cord, load chart in FT. & LBS.
Load Tested & Installed back of cab, with integral sub-frame to meet or exceed all CMVSS Standards
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
TRUCK DETAILS
New – Western Star 4800 Sloped Short Nose T/A Steer-T/A Rear – 4 Axle:
92,000 lb GVWR
DD-13 Diesel – 470 hp with Jake
Eaton Ultrashift 18spd Automated Trans.
(2) x 20,000 LB fronts with 425 / 65R22.5 tires, 52,000 LB Rears on Tuftrac Susp.
Double Frame
Polished ALCOA Aluminum Wheels front and outer rear
Dual Chrome single polished Exhaust, Chrome Grille & Bumper
Dual 80 gallon aluminum fuel tank
Loaded with Options including:

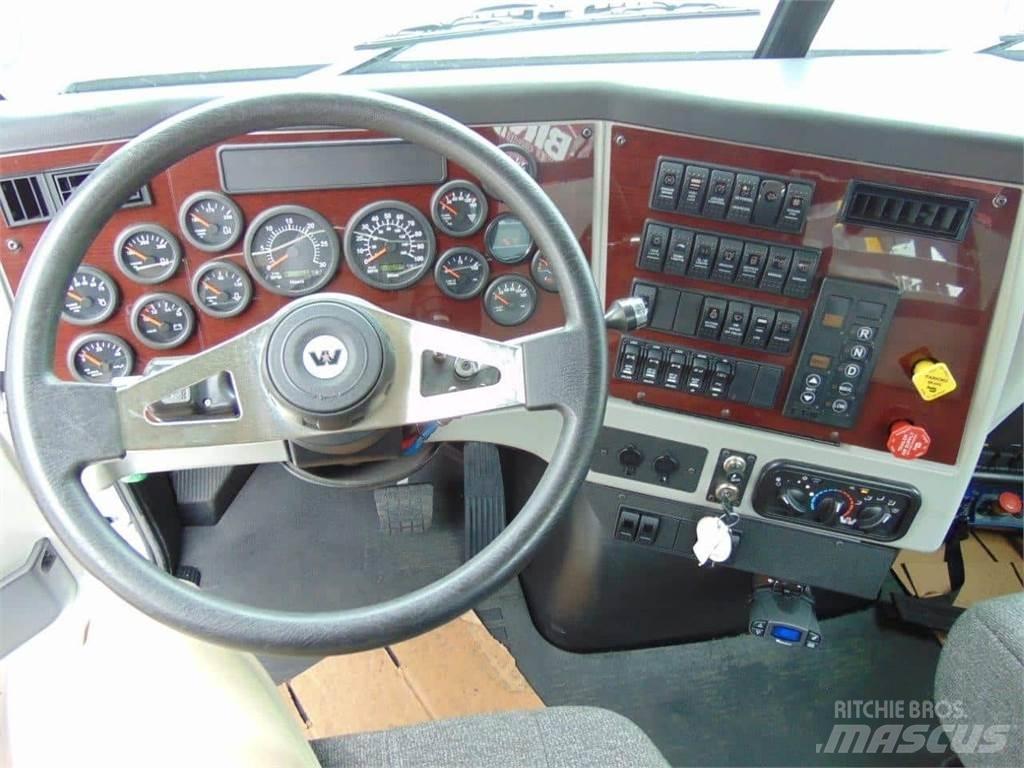

A/C, Tilt/Telescopic steering, top level Interior, AM/FM/CD, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power window both sides , power mirrors & door locks, Air ride cab, trailer air tow package, truck cab white colour, 5th
wheel on at tandems w/ramps
, etc…
Also Included
:
(6) pcs – 2” PVC stab pads w/holders
(2) pcs Alum storage boxed installed
Custom re-enforced manual extension for grapple
Mecanil SG-280 Grapple Saw with spare parts kit
Custom 2’ deck behind boom with grapple saw holder(s)
8’ removable carry deck over 5th
wheel,
Spot lights on main boom and on jib
2 to 3 day Boom feature/operation familiarization by BIK tech at your location
Other Options Also Available:
(additional) Mecanil SG 160 Grapple saw with spare parts kit & holder
(1) Additional Manual pull out boom extension for regular lifting hook (adds 5.5’ more reach)
(1) Aluminum single man self-levelling basket
Hook Lift Deck removal system or Dump Body (instead of 5th
wheel or flat deck)
Näita veel
BIK Boom Trucks - Milford, MA
177 Central St. 01757 Milford Massachusetts Ameerika Ühendriigid
