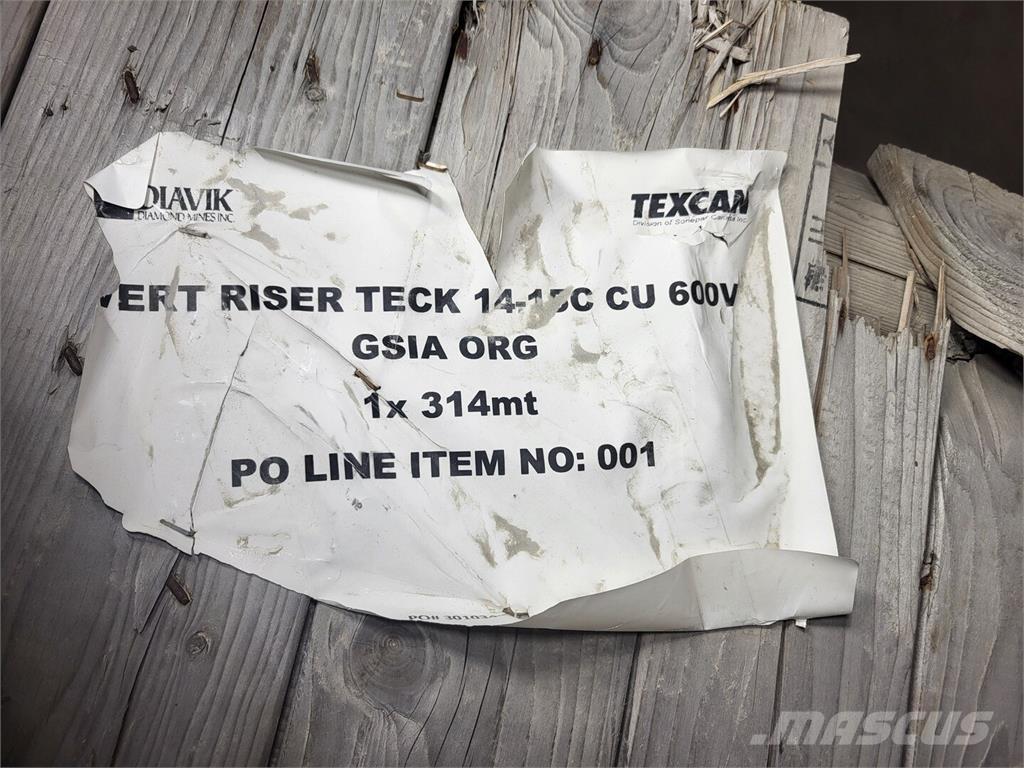

TEXCAN 05001-14-010

Vertical Riser Teck Cable 14-15C CU 600V, 314m L, GSIA, 05001-14-010 Title: Vertical Riser Teck Cable 14-15C CU 600V, 314m L, GSIA, 05001-14-010 SKU: 140976 Model: 05001-14-010 Year: 2020 Condition: Used - Like New GeneralLength:1029ft ElectricalWire Type:Teck Cable Wire Size:14 AWG # of Conductors:15 Voltage:600volts Dimensions: 45.00 (H) x 38.00 (W) x 45.00 (L) inches Armoured: Yes Voltage: 600V AWG Size: 14 No of Conductors: 15 Insulation Material: Cross-linked Polyethylene (XLPE) CSA: Yes Approximate Diameter Armour: 0.96 Approximate Diameter Inner Jacket (in.): 0.74 Approximate Diameter Outer Jacket (in.): 1.04 Armour Material: Aluminum Interlocked Armour (AIA) Color: Black Conductor Material: Stranded bare copper Copper Content KG/KM: 323 Copper Content LB/MFT: 217 Flame Test Rating: Yes Approximate Diameter Insul. (in.): 0.13 Jacket Material: Polyvinyl Chloride (PVC) Name: Teck Cable 14 AWG 15C 600V AIA
