A.B.M. OTOMAT CNC

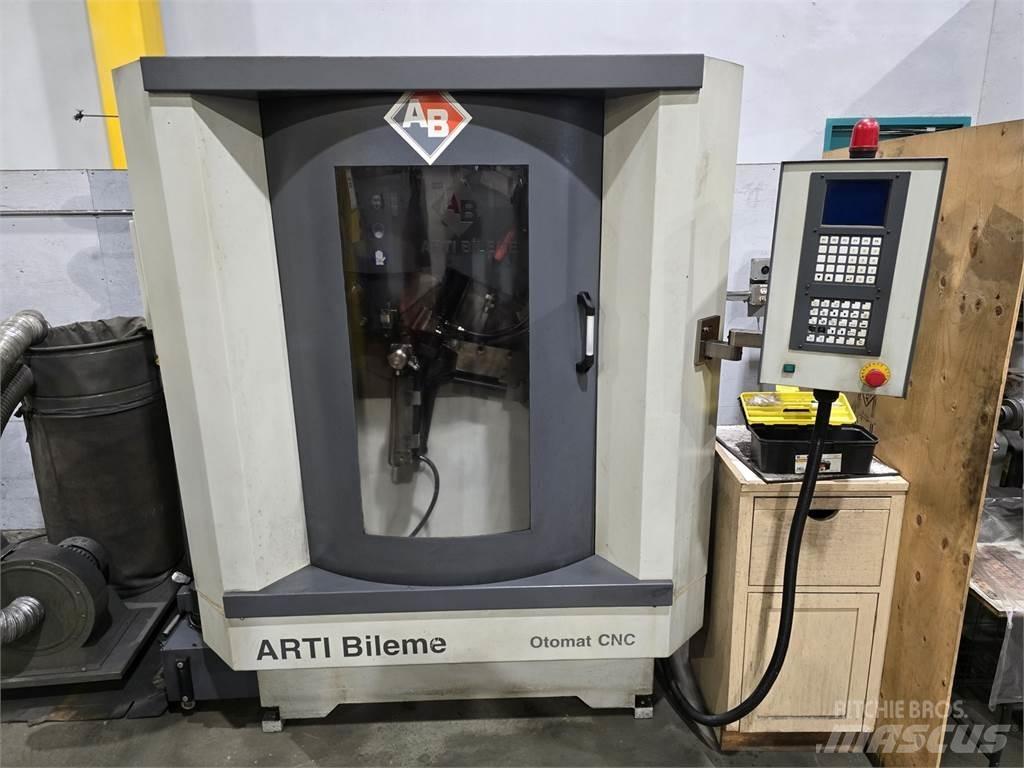

Sharpening Circular Saw OTOMAT CNC Title: Sharpening Circular Saw OTOMAT CNC SKU: 129578 Model: OTOMAT CNC Year: 2008 Condition: Used GeneralType:Wheel ElectricalVoltage:380volts Dimensions: 79.00 (H) x 43.00 (W) x 62.00 (L) inches Total power: 3.50 kW Power supply voltage: 380 volts Circular saw blade outside diameter: 100 mm - 810 mm Circular saw blade bore: 6-105 mm Circular Saw blade thickness: max. 8 mm Tooth pitch: 5-100mm Grinding speed: 10-30 teeth/min Skew angle: 0-45 deg Cutting angle (hook angle): between -10 deg, + 30 deg Grinding wheel diameter: 125" Grinding wheel bore: 32 mm Thickness of circular saws: 1.5 - 5 mm Front sharpening angle of saw teeth: 10 deg. - 30 deg. Dimensions of diamond grinding wheel: 125 mm x 32 mm
