Cummins 6CTA8.3-C240
Hind km-ta
5
Lemmik
Jaga
Otsingu salvestamineTrüki
INFO
Tooterühm
Mootorid
Mark / mudel
Cummins 6CTA8.3-C240
Tootmisaasta
2020
Riik
Hiina
Mascus ID
A51922C7
HIND
Vali valuuta
DETAILID
Mootori võimsus
179 kW (243 hj)
Varuosa ID
6CTA8.3-C240
Transpordikaal
700 kg
Transpordimõõtmed (p x l x k)
1600 x 900 x 1400 mm
Pöörlemissagedus
2200
Heitmestandard
Stage II
Toodetud
Hiina
Tarnetingimused
FOB, CFR, CIF, EXW
Muu teave

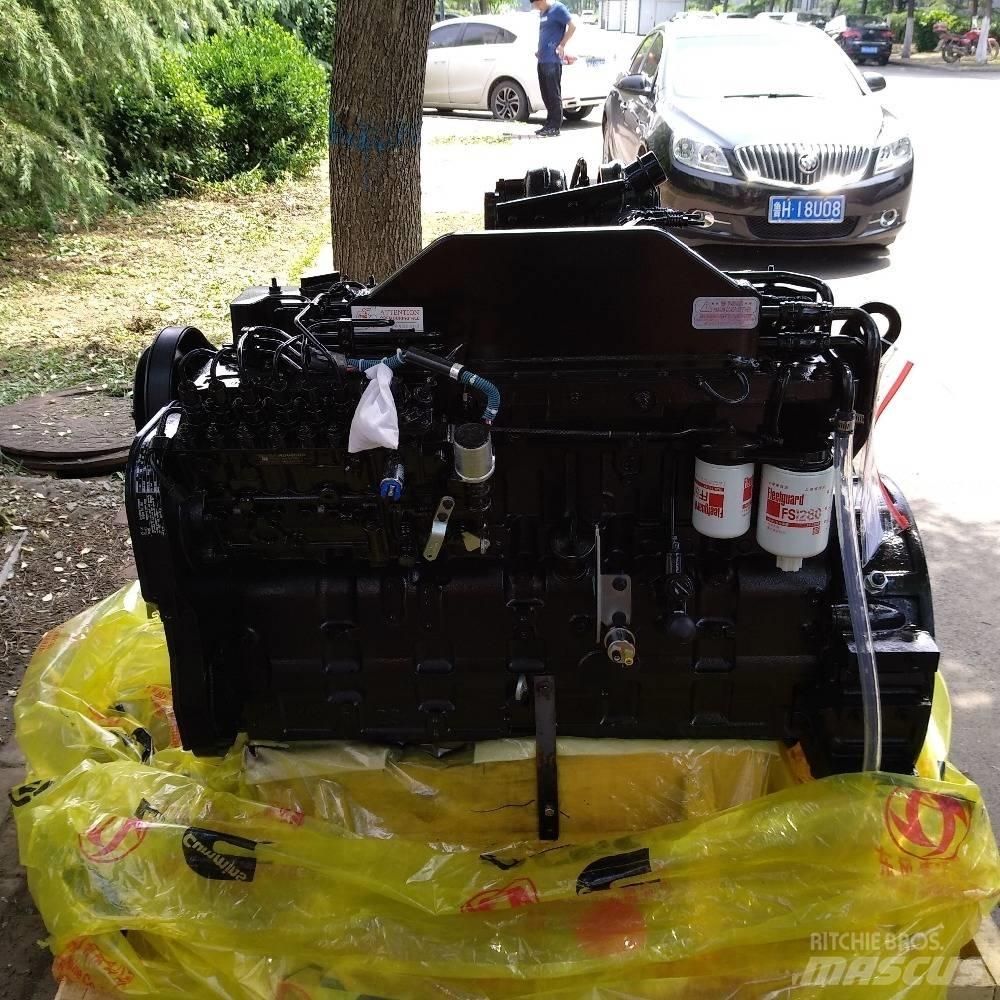

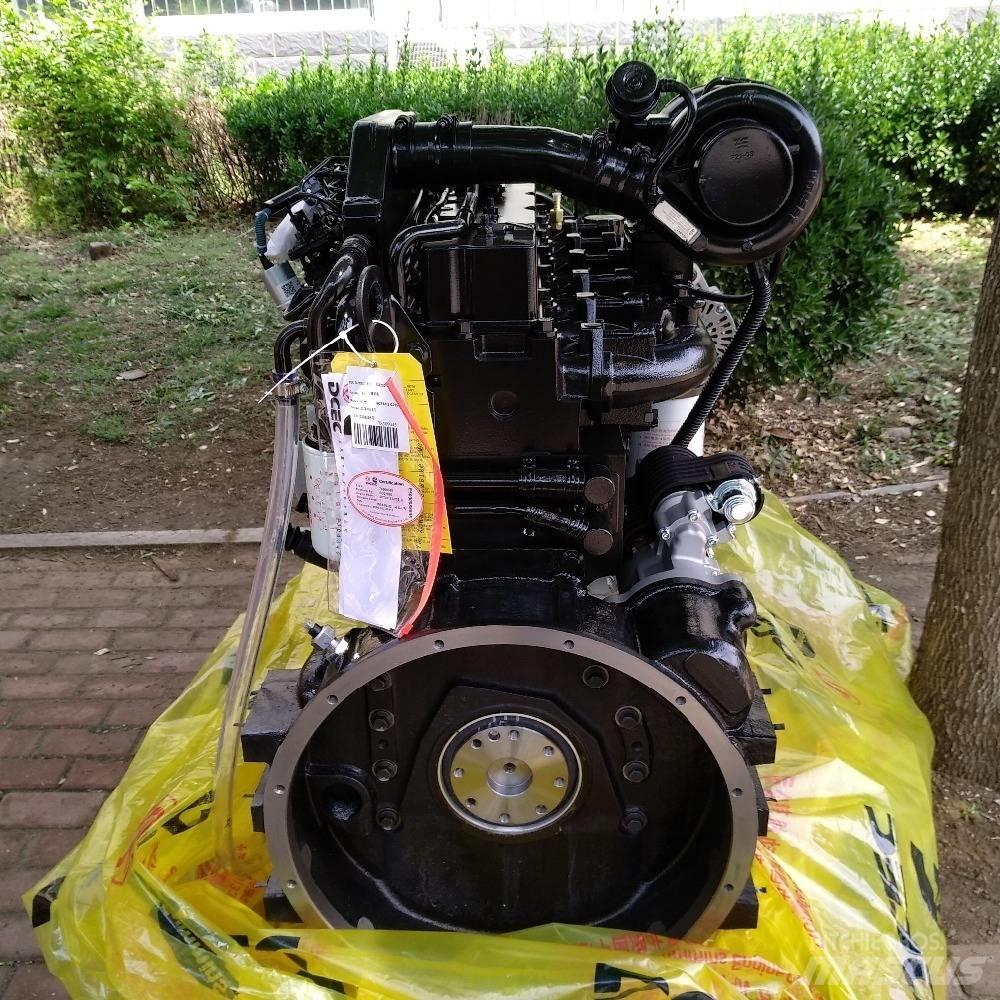

Cummins 6CTA8.3-C240 Industrial Diesel Engine
General Information
Engine Model 6CTA8.3-C240
Engine Type 6 Cylinders in Line
Displacement 8.3 L
Bore*Stroke(mm) 114 * 135
Engine Configuration Number D413061CX03
Net Weight (with flywleel & alternator) 637 Kg
Overall Diemension(L*W*H) 1560mm*900mm*1400mm
Technical Specification
Certification Euro I
Aspiration Turbocharged & Intercooled
Fuel System Wuxi Weifu PW2000/RSV
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Engine Cooling Fluid Volume 9.8 L
Performance Data
Rated Power/Speed 179 kW/240HP 2200rpm
Max.Torque/Speed 1028N.m 1500 rpm
Fuel Consumption Rated Power 231g/Kw.h
Idel Speed 1000rpm
Max. Continuous Running Altitude 2000 m
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Hiina
