Horyong BMK-403 ECO

Hind km-ta

Compnay LOGO
Images10

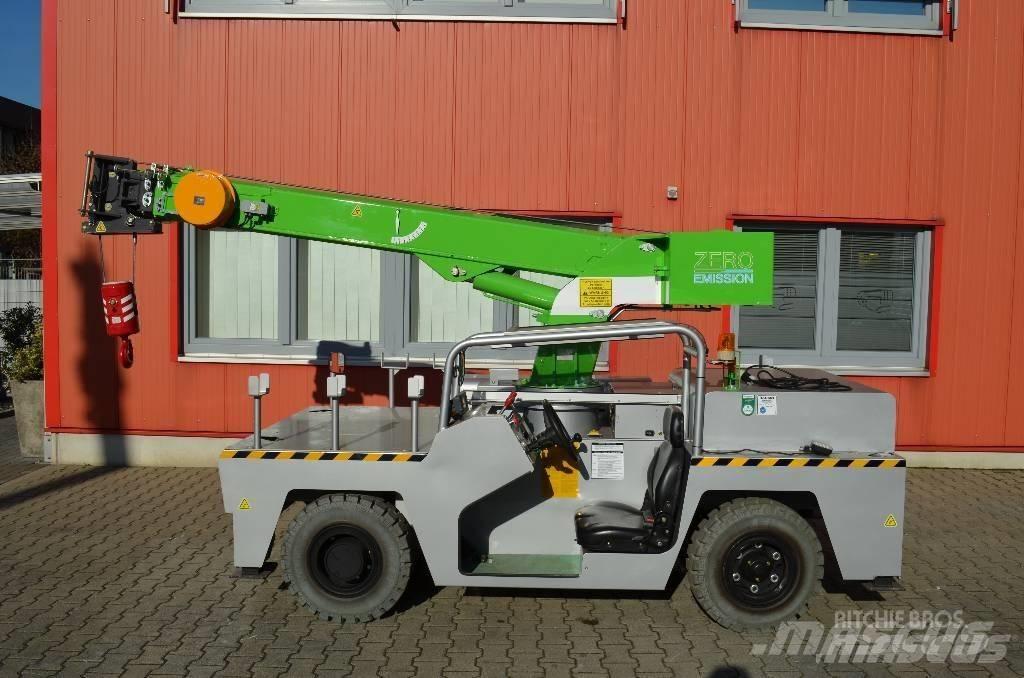

Horyong BMK-403 ECO Minikraanad
Horyong BMK-403 ECO Minikraanad
Horyong BMK-403 ECO Minikraanad
FavoriteLemmik
shareJaga
Save searchOtsingu salvestamine
Trüki

INFO

Tooterühm
Minikraanad
Mark / mudel
Horyong BMK-403 ECO
Tootmisaasta
2018
Töötunnid
287 h
Asukoht
Duisburg, Nordrhein-Westfalen
Riik
Saksamaa
Üldine hinne
1
2
3
4
5
Mascus ID
359B22F4

HIND

Vali valuuta

DETAILID

Täismass
4,019 kg
Tõstevõime
4,000 kg
Noole pikkus
680 cm
Kallutatava noole pikkus
680 cm
Mootori tootja
Akku
Tõstekõrgus
1,020 cm
Kraana konksu kõrgus - horisontaalne nool
840 cm
Kraana konksu kõrgus - kallutatav nool
221 cm
Transpordimõõtmed (p x l x k)
435000 x 157000 x 205000 mm
Rehvide mark
NM-Bereifung
Esisilla rehvide jääk
100%
Tagasilla rehvide jääk
100%
Tarnetingimused
FCA, CFR, EXW
Sertifikaadid
CE sertifikaat
Lisad
Konksu plokid
Muu teave
Battery industrial yard crane HORYONG BMK-403 ECO, used unit battery drive, CE 2018, approx. 287 working hours Pick+carry and Carry deck TECHNICAL DETAILS: max. lifting capacity 4,2 t x 0,9 m max. load pick + carry 2,9 t max. load on carry deck 2,5 t max. working range 6,7 m (8,2 m with fly jib) max. hook height: 8,41 m (10,2 m with fly jib) DIMENSIONS & WEIGHT length 4.350 mm width 1.570 mm, height 2.050 mm total weight of crane: 4.019 kg outrigger base: 2.330 mm x 3.330 mm CRANE EQUIPMENT: telescopic main boom 3,07 bis 6,8 m, fully hydraulic, 3 sections fly jib with sheave head 2,2 m, max. lifting capacity 1,2 t, angel 0°, 25°, 50° one winch 360° slewing range unlimited Electronical Safe Load Indicator System Rayco Wylie i4500 working range limiter optical and voice warning system working light, emergency stop, round-about light hook block 1-sheave, max. 4,0 t lifting capacity drive 4 x 2 x 2 Carry-Deck for goods, size 1,55 m², max. load 2,9 t 3 pieces pipe holders / transport holders 4-point hydraulic outriggers, front and rear electric engine with batteries, 2x 10 kW, 72V / 300 Ah, rechargable batteries, integrated battery charger max. speed of crane is 6 km/h 4x non marking tires open crane driver cabin with lattice protection roof, operation panel The electric yard crane crane is in good working condition and can be ideally used inside hall areas where exhausts are vorbidden, The unit is immediately available ex our yard and can also be rented for jobsites in Germany.Näita veel

Mini & Mobile Cranes Körner GmbH

Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Saksamaa
