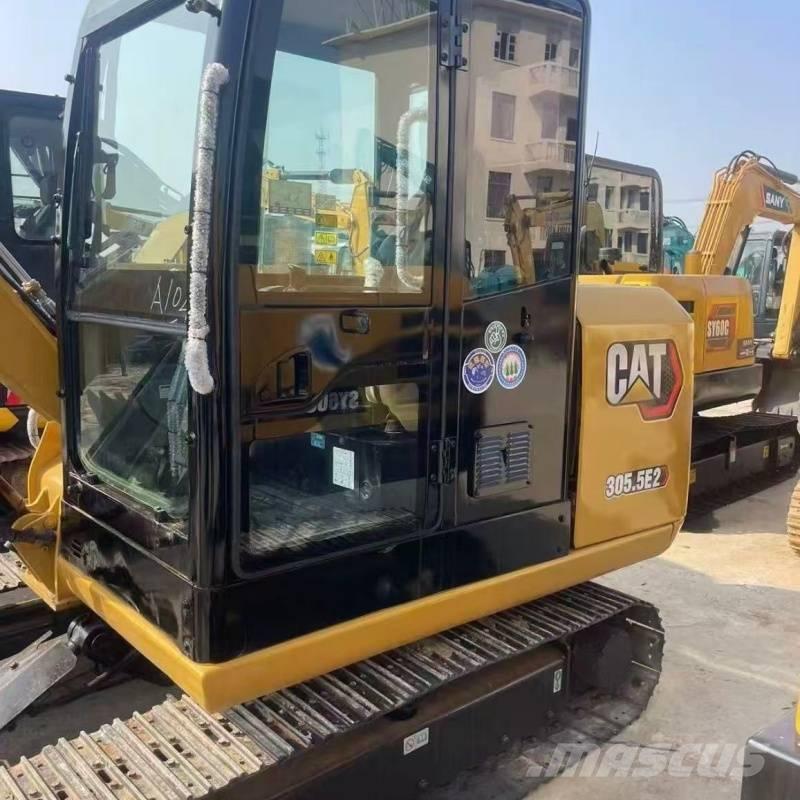

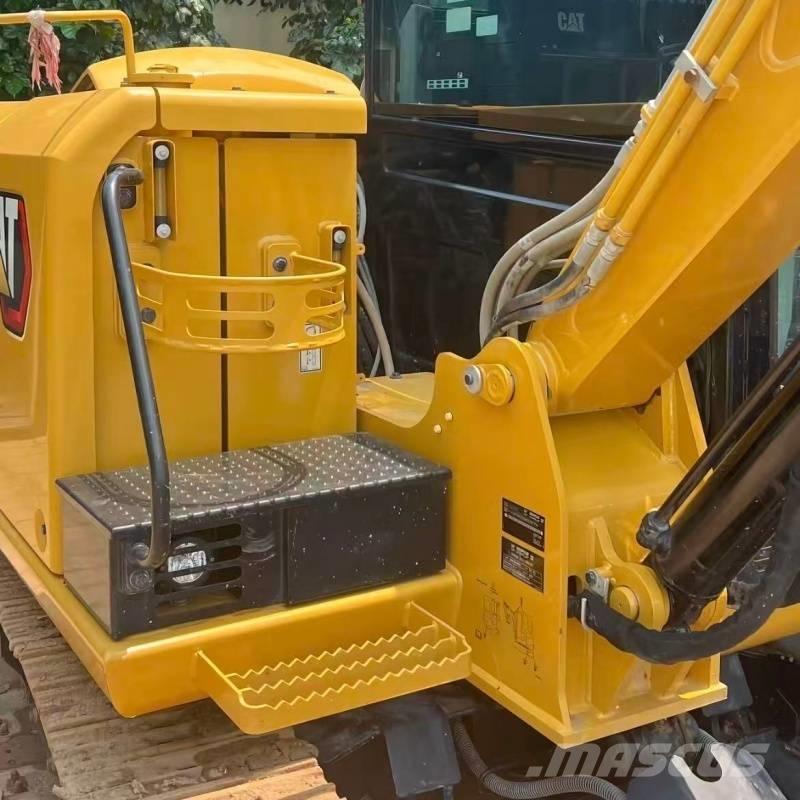

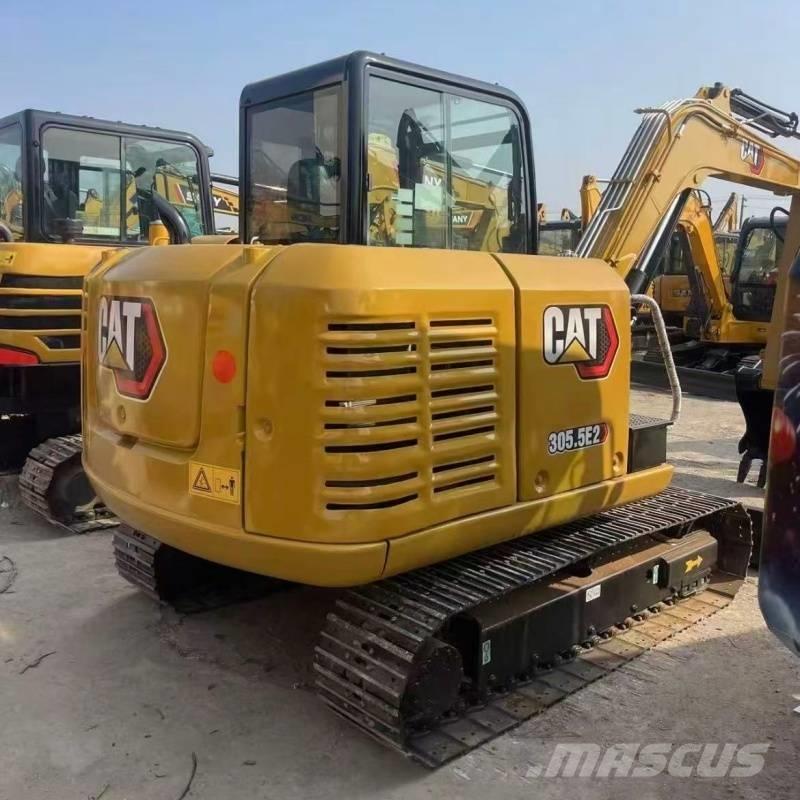

CAT 305.5 E
Hind km-ta
6
Lemmik
Jaga
Otsingu salvestamineTrüki
INFO
Tooterühm
Miniekskavaatorid < 7 t
Mark / mudel
CAT 305.5 E
Tootmisaasta
2023
Töötunnid
854 h
Riik
Hiina
Üldine hinne
1
2
3
4
5
Mascus ID
9C2859E2
HIND
Vali valuuta
DETAILID
Jõuallika tüüp
Diisel
Viimane ülevaatus
2025-11-04
Varasemaid omanikke
1
Alusvankri seisukord
98%
Täismass
5,400 kg
Heitmestandard
Stage V
Roomiku laius
400 mm
Kopa mahtuvus
0.22 m3
Transpordimõõtmed (p x l x k)
5765 x 1950 x 2540 mm
Originaalvärv
original
Mootor
original
Mootori võimsus
31.4 kW (42.7 hj)
Mootori tootja
original
Seisukord/Garantii
1 year
Tarnetingimused
FCA, FOB, CIF, EXW
Sertifikaadid
EPA Sertifikaat, CE sertifikaat
Lisad
Basic Information
Engine Model: Cat C2.4 DI
Net Power: 31.1kW (41.7hp)
Operating Weight: 5400kg
Bucket Capacity: 0.22m³
Dimension Parameters
Overall Transport Length: 5765mm
Overall Transport Width: 1950mm
Overall Transport Height: 2540mm
Total Track Length: 2440mm
Track Shoe Width: 400mm
Track Gauge: 1550mm
Counterweight Ground Clearance: 628mm
Rear Swing Radius: 1580mm
Performance Parameters
Bucket Digging Force: 35kN
Stick Digging Force: 27.2kN
Travel Speed: 2.8km/h (low), 4.3km/h (high)
Swing Speed: 10.5r/min
Gradeability: 25°
Maximum Digging Depth: 3720mm
Maximum Digging Height: 5460mm
Maximum Dump Height: 3835mm
Fluid Capacities
Fuel Tank: 78L
Hydraulic Tank: 58L
Hydraulic System: 85L
Engine Oil Change Capacity: 9.5L
Cooling System: 9.8L
Lisad
Kliimaseade
Sõelkopp
Juhtkang
Standard kaevekopp
Muu teave
Basic Information
Engine Model: Cat C2.4 DI
Net Power: 31.1kW (41.7hp)
Operating Weight: 5400kg
Bucket Capacity: 0.22m³
Dimension Parameters
Overall Transport Length: 5765mm
Overall Transport Width: 1950mm
Overall Transport Height: 2540mm
Total Track Length: 2440mm
Track Shoe Width: 400mm
Track Gauge: 1550mm
Counterweight Ground Clearance: 628mm
Rear Swing Radius: 1580mm
Performance Parameters
Bucket Digging Force: 35kN
Stick Digging Force: 27.2kN
Travel Speed: 2.8km/h (low), 4.3km/h (high)
Swing Speed: 10.5r/min
Gradeability: 25°
Maximum Digging Depth: 3720mm
Maximum Digging Height: 5460mm
Maximum Dump Height: 3835mm
Fluid Capacities
Fuel Tank: 78L
Hydraulic Tank: 58L
Hydraulic System: 85L
Engine Oil Change Capacity: 9.5L
Cooling System: 9.8L
