Vale Industries 3680S-DH22 Radial Stacker

Hind km-ta

Compnay LOGO
Images6

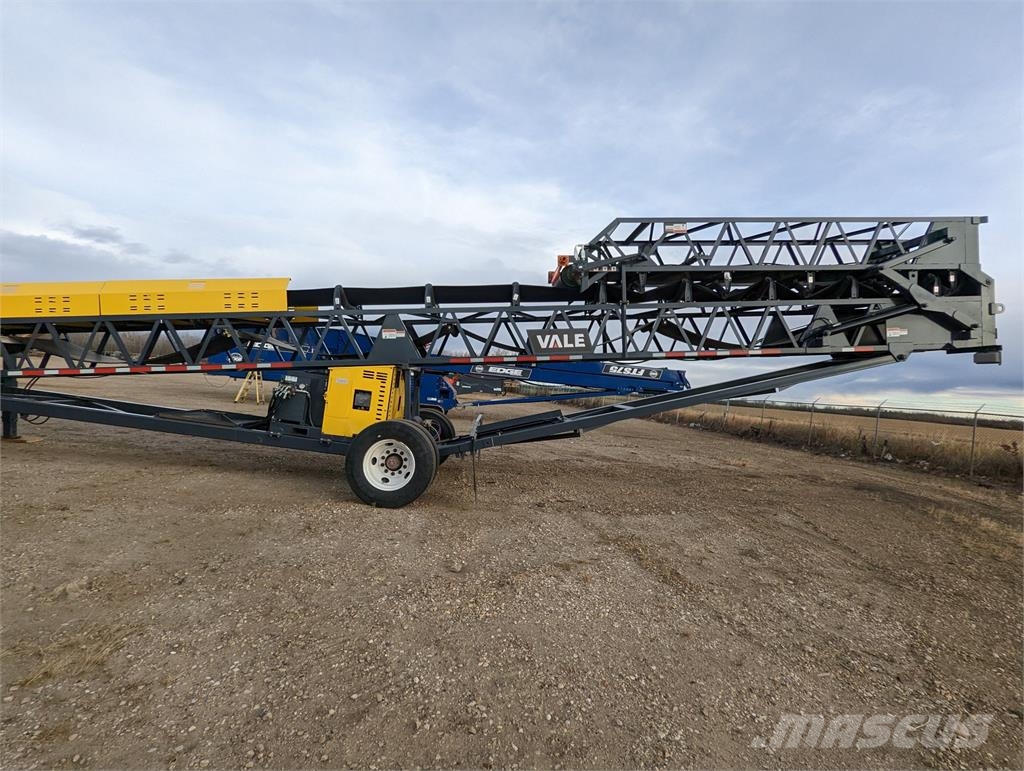

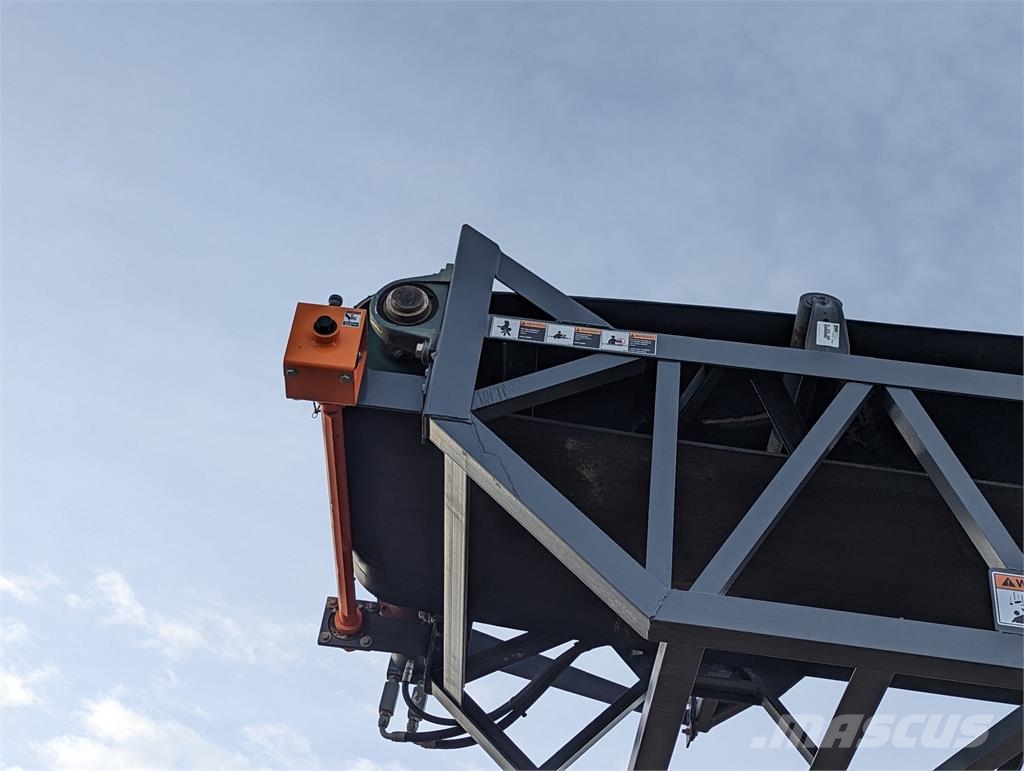

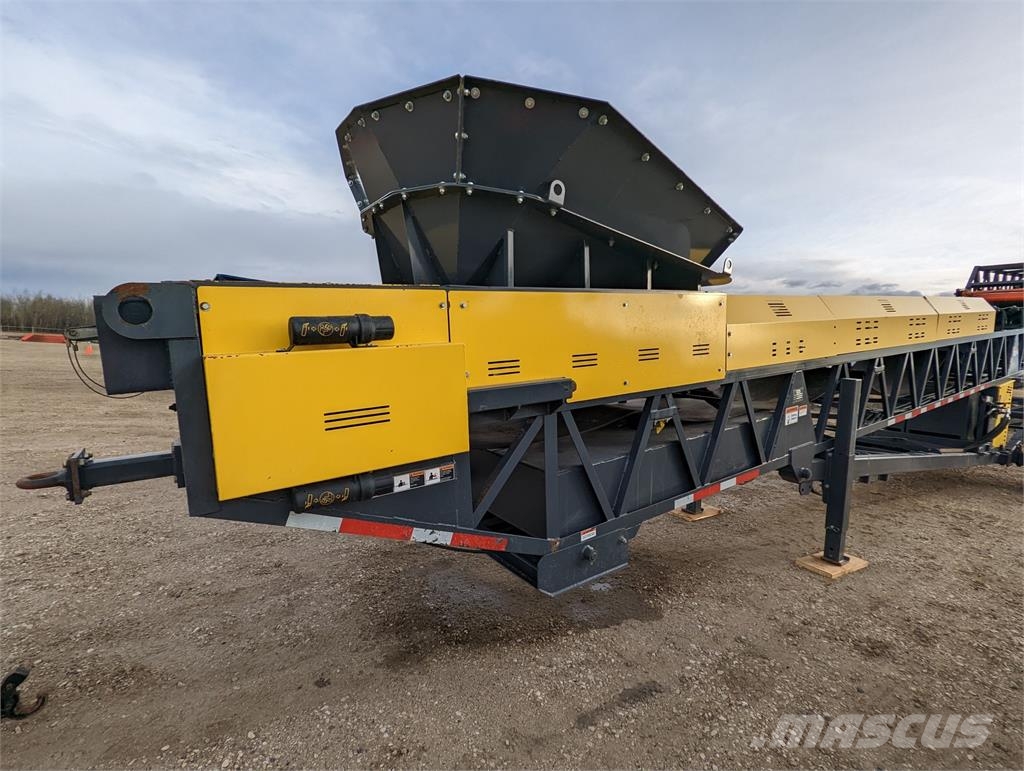

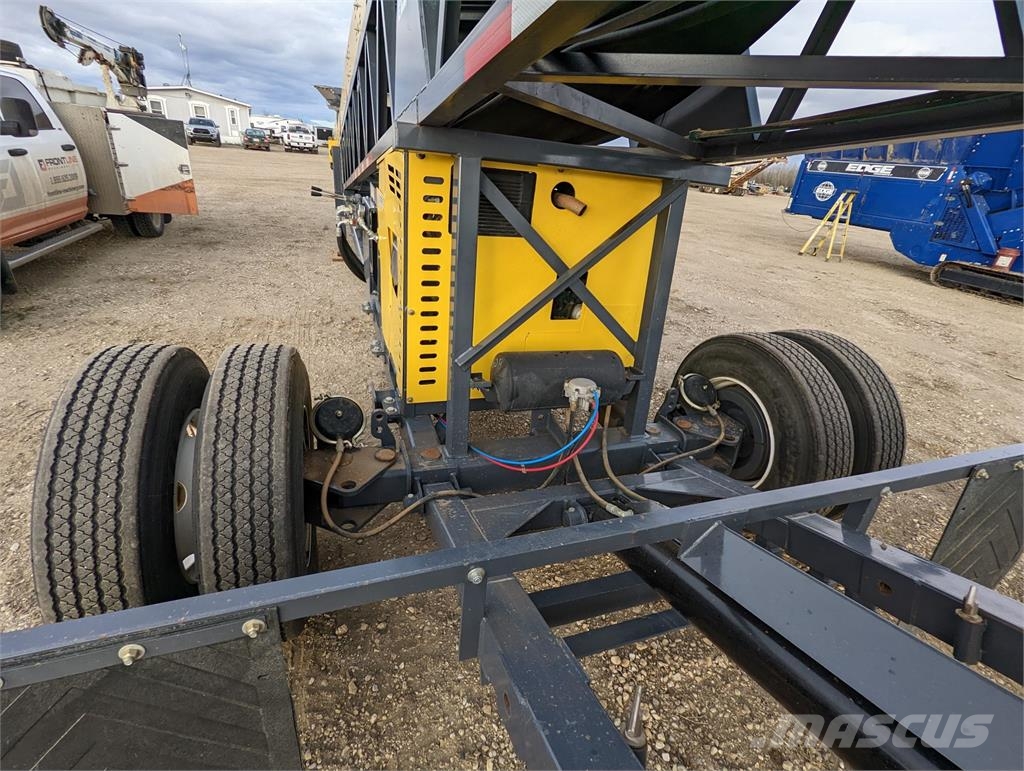

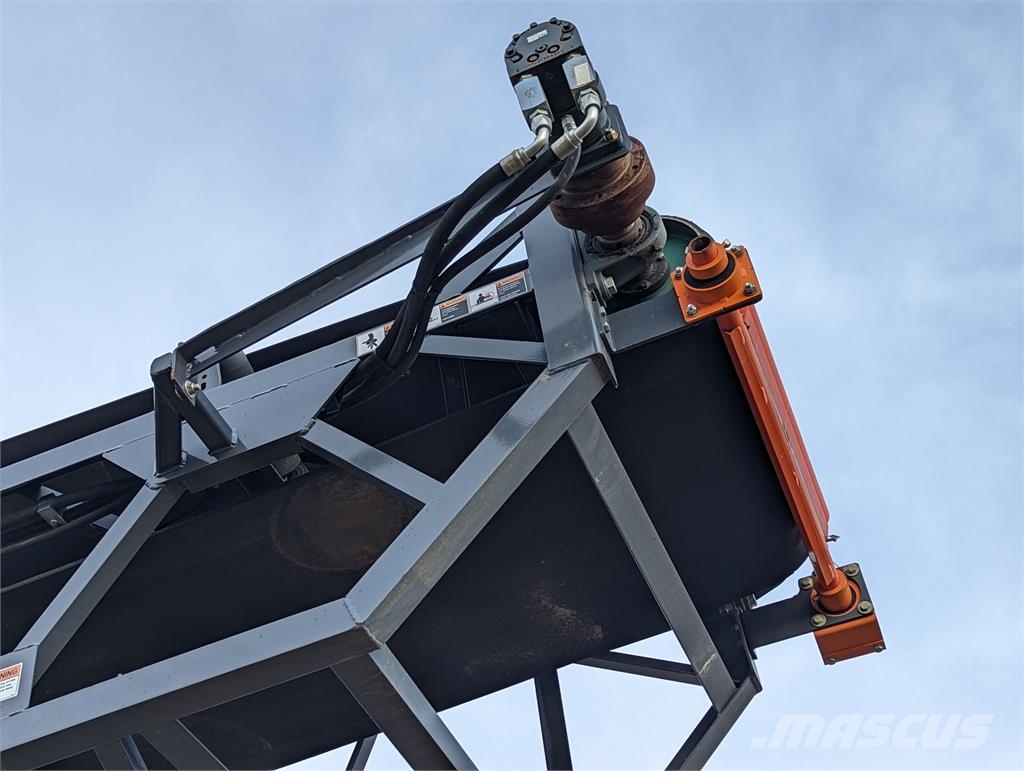

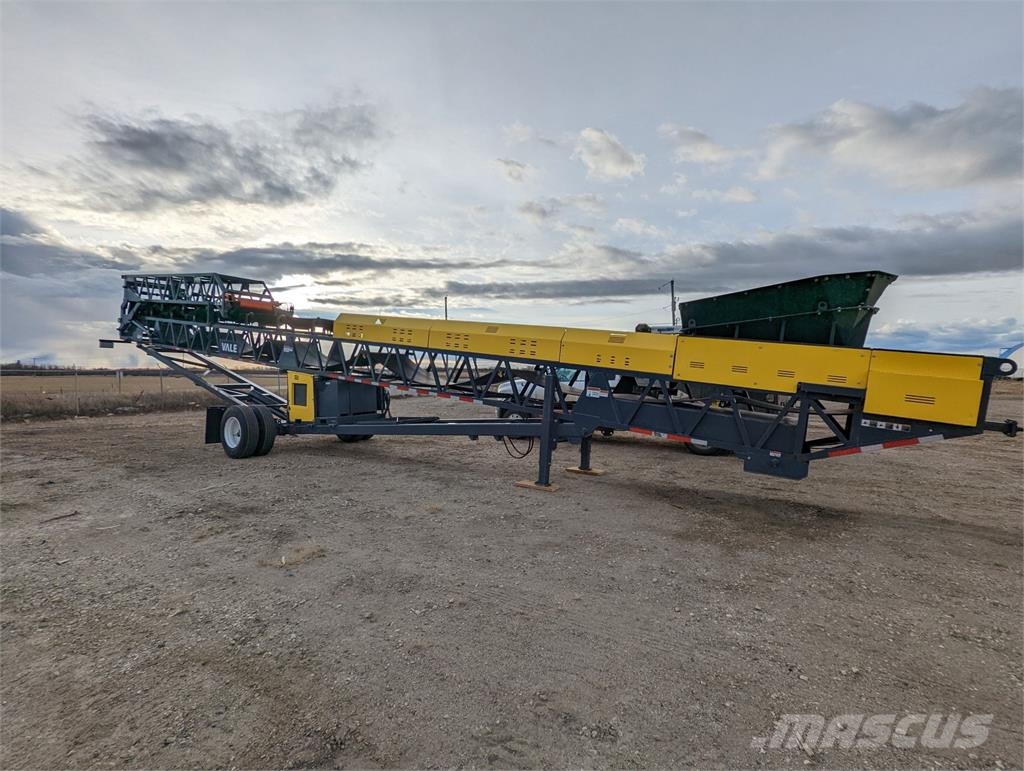

Vale Industries 3680S-DH22 Radial Stacker Konveierid
Vale Industries 3680S-DH22 Radial Stacker Konveierid
Vale Industries 3680S-DH22 Radial Stacker Konveierid
FavoriteLemmik
shareJaga
Save searchOtsingu salvestamine
Trüki

INFO

Tooterühm
Konveierid
Mark / mudel
Vale Industries 3680S-DH22 Radial Stacker
Tootmisaasta
2021
Töötunnid
1,195 h
Asukoht
Leduc, Alberta
Riik
Kanada
Mascus ID
91BB6805

HIND

Vali valuuta

DETAILID

Muu teave
CAPACITY 22 degree max incline rated up to 500 tph 36" belt x 80', 350 fpm belt speed POWER UNIT Designed with a Kubota 50 HP V2243-CR-E4B Tier 4 engine power unit Flywheel hydraulic pump, 2.0 cu in, w/ reservoir with filter and oil cooler Engine control panel and throttle, 12V battery start w/ cutoff switch 36-gallon diesel fuel tank capacity Lockable, guarded and skid-mounted unit CONVEYOR Belt 36" 330-3 ply 3/16x1/16 DO, vulcanized 12x38" head drum pulley, 1045-215 shaft, SCM 215 bearings 10x38" tail wing pulley, 1045-207 shaft, SCM 207 bearings, screw take-up, guarded Hydraulic motor drive LSHT hydraulic motor, 34.9 cu in, rigid coupling and torque arm connection CEMA B 4" trough (20 degree and 35 degree), and rubber disc idlers 1"-6" load spacing, 4' trough spacing, 10' return spacing 5.5' long skirt board with adjustable rubber skirting, guarded Prepared location for radial hopper, bolt-in CONVEYOR STRUCTURE 30" deep lattice truss 3" x 23" 1/4" angle cords, lattice framework, reinforced in high stress areas Hydraulic-powered top fold with transport supports UNDERCARRIAGE Hydraulic powered telescoping lift, safety pin lock Independent telescoping axles with swivel wheel boxes, 10'-6" transport width Ballasted tail end and pivot plate HIGHWAY TRANSPORT Dual 11R22.5 tires Air brakes, signal lights, reflective tape, mud flaps 5th wheel pin and Pintle tow rig Urethane Coating graphite grey with safety yellow  Näita veel

Frontline Machinery Ltd. - Leduc, AB

3305 74 Ave T9E 1J8 Leduc Alberta Kanada
