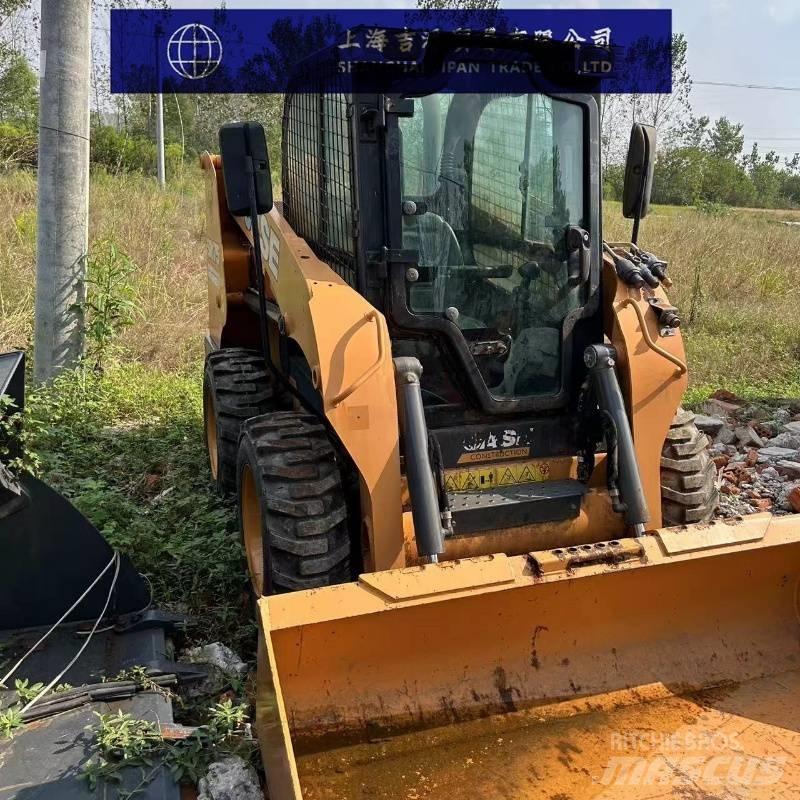

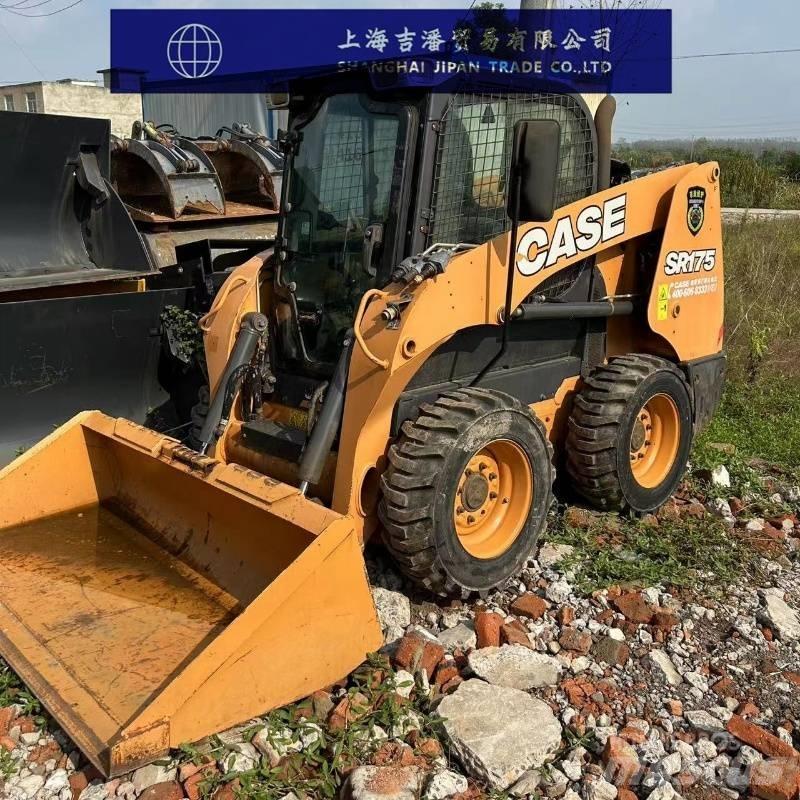

Case SR 175

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic performance parameters Rated loading capacity: 790kg Overturning load: 1588kg Overall weight: 2894kg Lifting mechanism form: Radial lifting Bucket lifting force: 31.8kN (or 31,800 N) Boom lifting force: 21.3kN (or 21,300 N) Engine parameters Engine model: Cummins ISM N844T/M3 Working form: Non-direct injection Rated power: 44.1kw/2900rpm (or 60hp, 1hp=0.7457kw, there is a difference in unit conversion here, but the values are similar and may vary due to different sources or versions) Maximum torque: 171N·m/1800rpm Displacement: 2.2L Number of cylinders: 4 cylinders Emission standard: EPA Tier3 (The third stage emission standard of the United States Environmental Protection Agency) Through performance parameters Maximum torque output by the drive motor: 1784N · m/cc (This parameter may vary depending on specific configuration) Maximum driving speed: 11.8km/h (or 18.4km/h, optional) Tire size: 10×16.5 Forward turning radius (with bucket) : 2000mm Forward turning radius (without accessories) : 1300mm Rear turning radius: 1600mm Departure Angle: 22.5° Parameters of the hydraulic system Main pump type: Gear pump System safety pressure: 210bar System rated flow: 72L/min (or 108L/min, optional) Oil capacity parameters Fuel tank: 75.5L Hydraulic system: 20L (This may refer to the capacity of a certain part of the hydraulic system. For specific details, please refer to the official instructions.) Crankcase: 8.5L Sprocket oil tank: 6.7L (Specific function and capacity may vary by model) Operation range parameters Maximum working height: (Not directly given, but can be calculated through other parameters) Maximum unloading height: 2470mm Unloading distance (at maximum height) : 540mm The maximum height of the bucket hinge pin is 3100mm The unloading Angle at the maximum unloading height: 39.6° The retraction Angle of the bucket at its highest point: 98.6° The retraction Angle of the bucket on the ground: 31.6° Overall machine specification parameters Total length (without accessories) : 2690mm Total length (with bucket) : 3400mm Full width (tire edge) : 1627mm Full width (edge of the bucket) : 1676mm Total height (up to the top of the cab) : 1970mm Wheelbase: 1130mm Track: 1350mm Minimum ground clearance: 180mm
