Täielik hooldusajalugu
Jah
Mootor
Weichai WD12G220E23
Mootori võimsus
147 kW (200 hj)
Transpordimõõtmed (p x l x k)
6700 x 4370 x 3300 mm
Seisukord/Garantii
ISO9001
Varustatud
propertynames.pp_equippedfor_2100012
Tarnetingimused
FOB, CFR, CIF, EXW
Sertifikaadid
EPA Sertifikaat, CE sertifikaat, ANSI sertifikaat
Muu teave
Technical Features
● It’s equipped with Weichai WP12G220E33NG engine with power output at 200ps to realize low carbon emission and high environmental-friendliness by reducing the harmful gas emission by >90% and effectively prolong the service life of engine due to sufficient combustion of LNG without carbon deposit, featuring low operating cost and significant comprehensive benefits.
● The rear four-point shock-absorbing installation is adopted for the gas system. The multi-layer insulated high vacuum tank body features high safety, with the capacity at 500L and the maximum filling capacity at 196KG, which is enough for 12h continuous working.
● The installed temperature controlled system features excellent energy-saving and consumption reduction and high economy and environmental-friendliness.
● The independently developed control program implements real-time monitoring on the engine and temperature controlled fan.
● The bogie adopts central hinge type suspension installation, without splayed beam, to reduce the impact on the drive system.
● The drive system adopts modular design and double shock-absorbing installation to ease the maintenances and improve the reliability and comfort of the whole machine.
● The high pressure low flow hydraulic system is adopted to reduce the volume of hydraulic units and achieve compact and reasonable structural layout.
● The externally installed operating valves ensure easier checking and maintenances.
● The hydraulic pilot control is adopted for the working device.
● The mechanical operations by single joystick are adopted for the gearshift and the steering.
● It features comfortable, labor-saving, accurate, flexible operations, rapid response, and improved efficiency.
● The structure of high strength special-shaped tubes, labyrinth seals, and four-point shock-absorbing installation feature low noise and vibration and high comfort and safety.

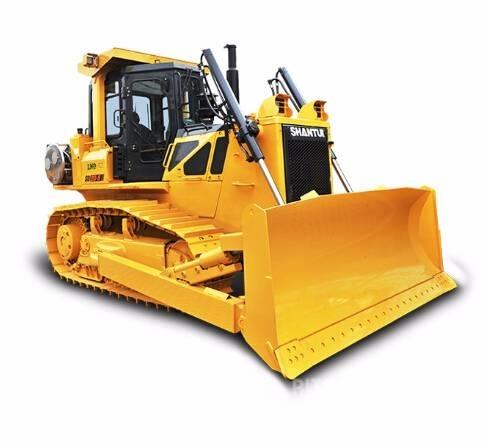

● SD20-5LNG is equipped with standard straight tilting blade and optional U-blade to provide operation possibility for the regions of higher environmental-friendly requirements.
Performance Parameters
Length × width × height (mm) (excluding ripper) 5450×3450×3255 Operating weight(t) (excluding ripper) 19.9
Engine model WP12G220E33NG Net power/rated speed (kW/rpm) 149/1200~1600
Ground pressure(Mpa) 0.065 Blade type U-blade
Blade capacity(m3) 4.5
Applicable Working Conditions
Applicable for the concentrated freight operations in material distribution centers (such as ports and coal yards) and for the operations in the sites with convenient gas refilling installation.Näita veel
