Hyster H 20 XD 9
Hind km-ta
Hind kokkuleppel
Trüki
INFO
Tooterühm
Diiseltõstukid
Mark / mudel
Hyster H 20 XD 9
Tootmisaasta
2024
Töötunnid
5 h
Seisund
Uus / kasutamata
Asukoht
Barneveld, Gelderland
Riik
Holland
Üldine hinne
1
2
3
4
5
Mascus ID
EFFC882F
DETAILID
Rataste arv
6
Viimane ülevaatus
2024-09-02
Tõstevõime
20,000 kg
Tõstekõrgus
3,750 mm
Vabatõste
3,780 mm
Masti tüüp
Kaheosaline
Rehvide mark
Trelleborg
Rehvitüüp
Õhkrehvid
Kahvlite pikkus
2,440 mm
Kabiin
Kinnine
Käigukast
automaat
Mootor
Mercedes
Mootori võimsus
180 kW (245 hj)
Mootori tootja
Mercedes
Esisilla rehvide jääk
100
Tagasilla rehvide jääk
100
Esisilla rehvimõõt
14.00-24
Tagasilla rehvimõõt
14.00-24
Toodetud
Holland
Juhtrataste arv
2
Veorataste arv
2
Sertifikaadid
CE sertifikaat
Lisad
Katuseaken
soojapuhur
Dokumendid
Muu teave

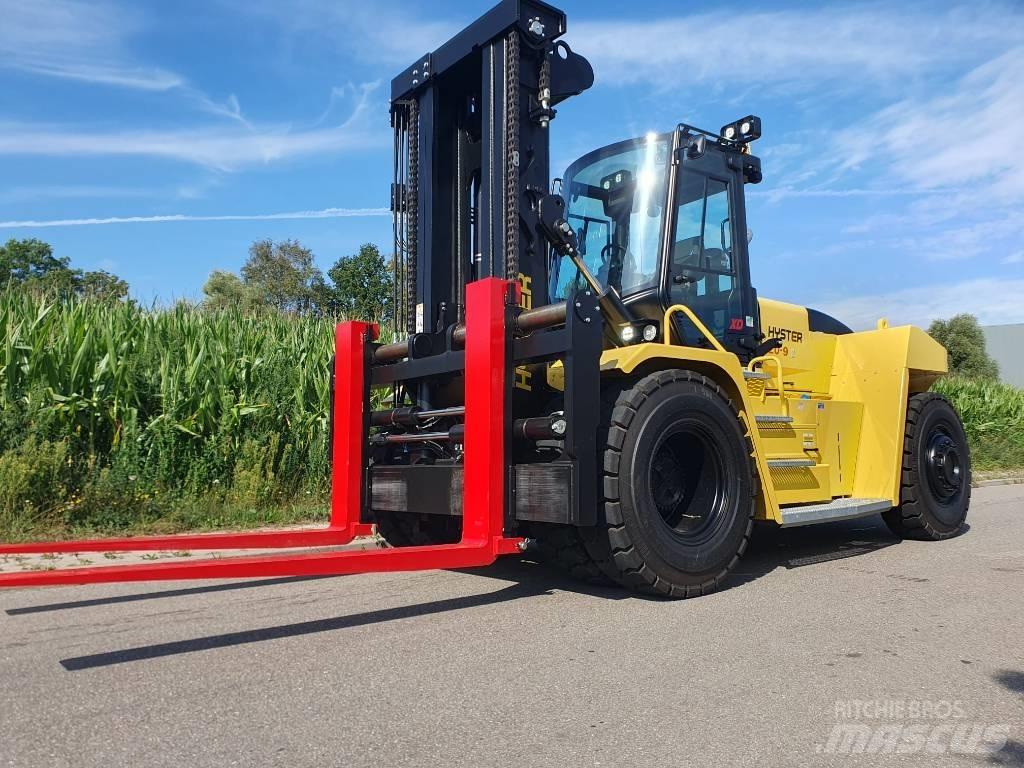

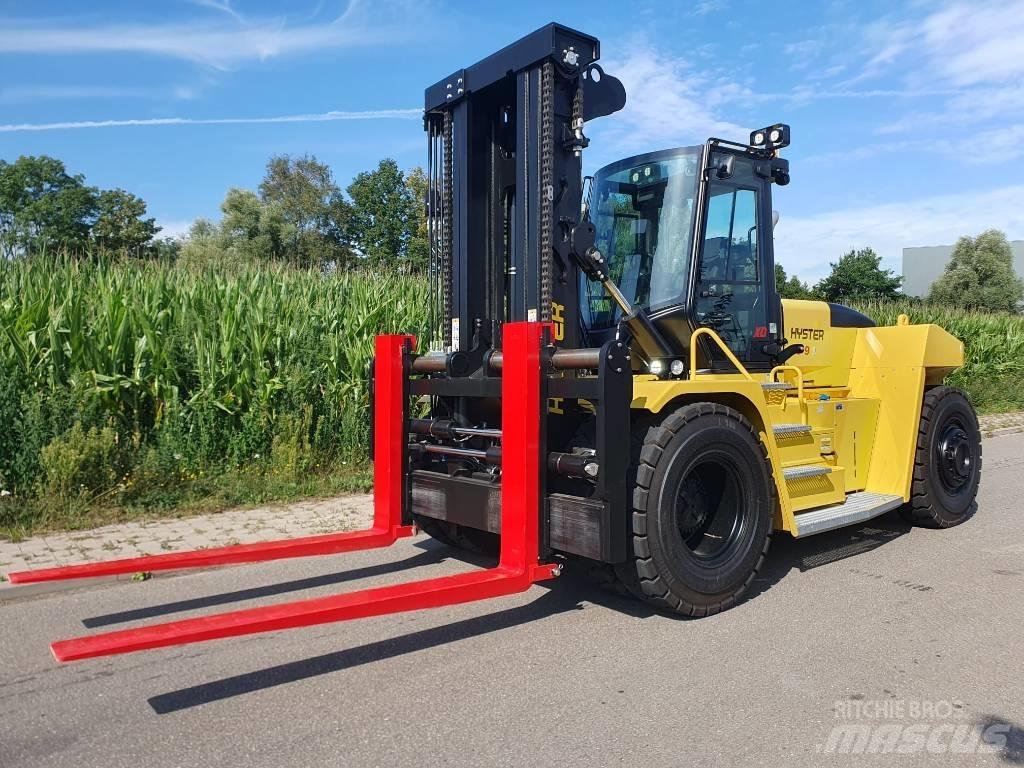

Hyster® H20XD9 High Capacity Forklift Truck: 20,000 kg Nominal Capacity @ 900 mm Load Center /
3,750 mm Wheelbase
Truck Start -- Key switch with start button -- Without Seatbelt Interlock

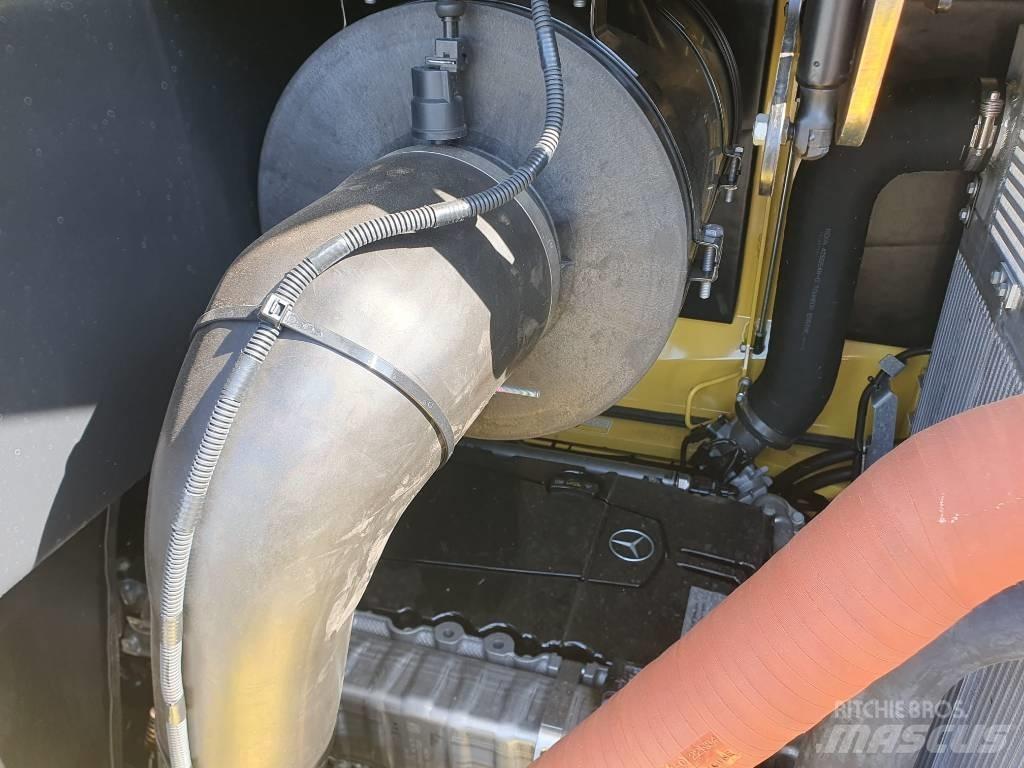

Mercedes 6R1000 7.7L Stage V Diesel Engine: Rated Power 180 kW @ 2200 rpm
Oil-immersed Wet Disc Brakes
ZF WG211 5-Speed Transmission with 5 Speeds Forward and 3 Speeds Reverse
CE Certification
Coolant Level Warning on Display
Engine Oil level on Display and Dipstick
Fuel Cap - Non-lockable
Delayed Engine Shutdown for Turbo Cooldown
2 Stage Non Free Lift Mast - 3750mm Maximum Lift Height - 3780mm Overall Lowered Height
Mast Tilt - 10° Forward / 12° Back
2940mm Quick Disconnect Hook Type Dual Function Sideshift Carriage with Simultaneous and
Individual Fork Positioner
2440mm Long x 100mm Thick x 250mm Wide - Hook Type Forks with Standard Taper
Pressure Compensated Lowering
6 Function (4 Auxiliary) Hydraulic Valve
Hydraulics controlled by 4 Levers and 2 Rocker Switches - Not For Clamping Attachments
4 Auxiliary Function Hose Group - 3 Hoses and 1 Wire Cable Externally Mounted - Includes Selector
Valve
Pneumatic Bias Ply Drive Tyres / 14.00-24 24PR
Pneumatic Bias Ply Steer Tyres / 14.00-24 24PR
Enclosed Operator Cabin with Air Conditioning and Automatic Climate Control
Top Window with Armored Glass
2 External Wide Angle Mirrors mounted on Cab Handrail
Digital 7" Display
I-Type Single Blade Wiper on Front Window
Armrest on Left Side
Electronic Horn 105 db(A)
Interior Dome Light
Manual Tilt Operator Compartment for Service Access
Sun Roller Screens for Rear and Top Window
Forward-Neutral-Reverse Directional Control on Armrest
Steering Wheel with Spinner Knob
Park Brake -- Automatic
Air Ride Full Suspension Vinyl Seat
Seatbelt - 2-Point High-Visibility
High and Adjustable Seat Backrest
Hyster Tracker Wireless Monitoring - EMEA
2 LED Work Lights Mast Mounted Front / 2 LED Cab Mounted Rear / 2 LED Drive Lights Front Fenders
/ 2 LED Rearward Cluster with Stop, Tail and Reverse Lights / Directional Lights on Front Fender and
Rear Cluster
Audible Alarm - Reverse Direction Activated - Self-Adjusting 82-102 dB(A)
Amber Strobe Light - Ignition and Switch Activated
24 Months / 4000 Hours Manufacturer's Warranty
