Cummins K50-G3
Hind km-ta
Hind kokkuleppel
6
Lemmik
Jaga
Otsingu salvestamineTrüki
INFO
Tooterühm
Mootorid
Mark / mudel
Cummins K50-G3
Tootmisaasta
2020
Riik
Hiina
Üldine hinne
1
2
3
4
5
Mascus ID
351427B0
DETAILID
Mootori võimsus
1,097 kW (1,492 hj)
Varuosa ID
K50-G3
Mootori tootja
Cummins
Seerianumber
KTA50-G3
Transpordikaal
5,410 kg
Transpordimõõtmed (p x l x k)
3200 x 2300 x 2000 mm
Pöörlemissagedus
1500
Heitmestandard
Stage II
Seisukord/Garantii
ISO90001
Toodetud
Hiina
Tarnetingimused
DAP, DDP, FOB, CIF, EXW
Muu teave

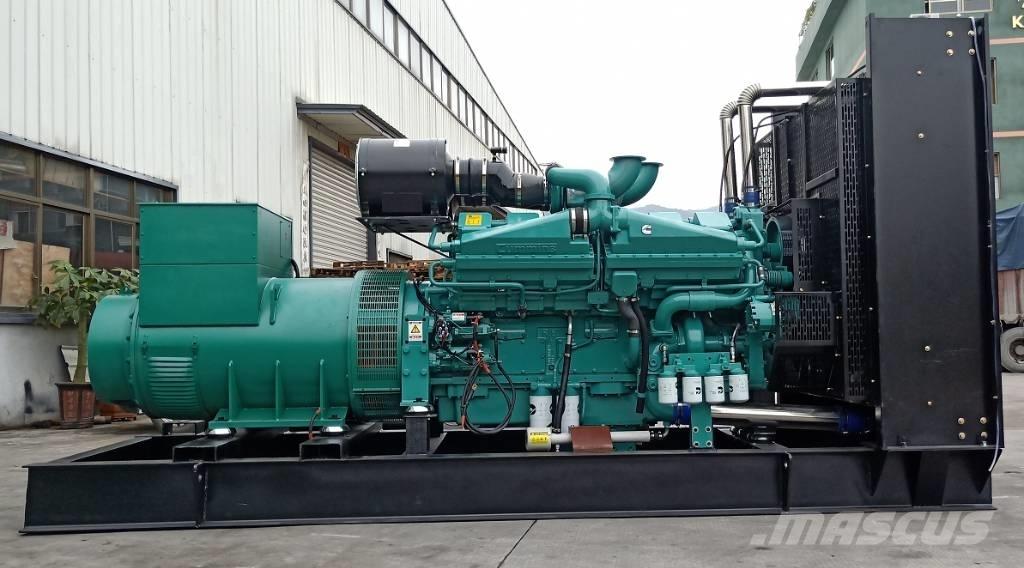

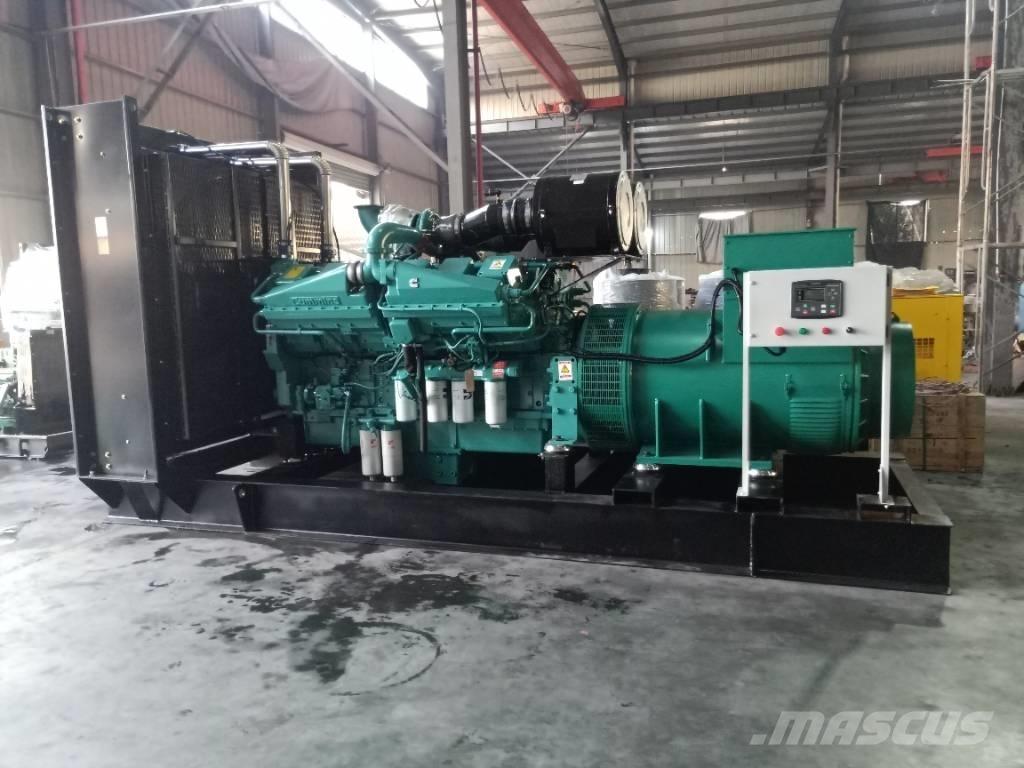

Cummins KTA50-G3 Generator Engine
General Information
Engine Model KTA50-G3
Engine Type 16 Cylinders, V-type
Displacement 50.3 L
Bore*Stroke(mm) 159 * 159
CPL Number 2227
Net Weight (with flywleel & alternator) 5360 Kg
Overall Diemension(L*W*H) 2978mm*2080mm*1780mm
Technical Specification
Fuel System PT Pump Direct Injection
Aspiration Turbocharged & Intercooled
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling Fluid 161L
Engine Oil Volume 151 L
Performance Data
Rated Power/Speed 1097kW/1470HP/ 1500rpm
Standby Power/Speed 1227kW/1645HP /1500rpm
Idle Speed At Rated Power 725-775r/min
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Hiina
